Panduit FHCZO-24-10U | HD Flex™ Fiber Optic Cassette
Description
Description
Panduit HD Flex Fiber Optic Cassette, LC Duplex Adapter, 12 LC Duplex End A, 2 MPO Male End B, 24 Fibers, OM4 Fiber, Aqua
Offering a variety of configurations and connector options, our HD Flex™ fiber optic cassette allows for customization of network connections, and streamlines installation and reduces waste.

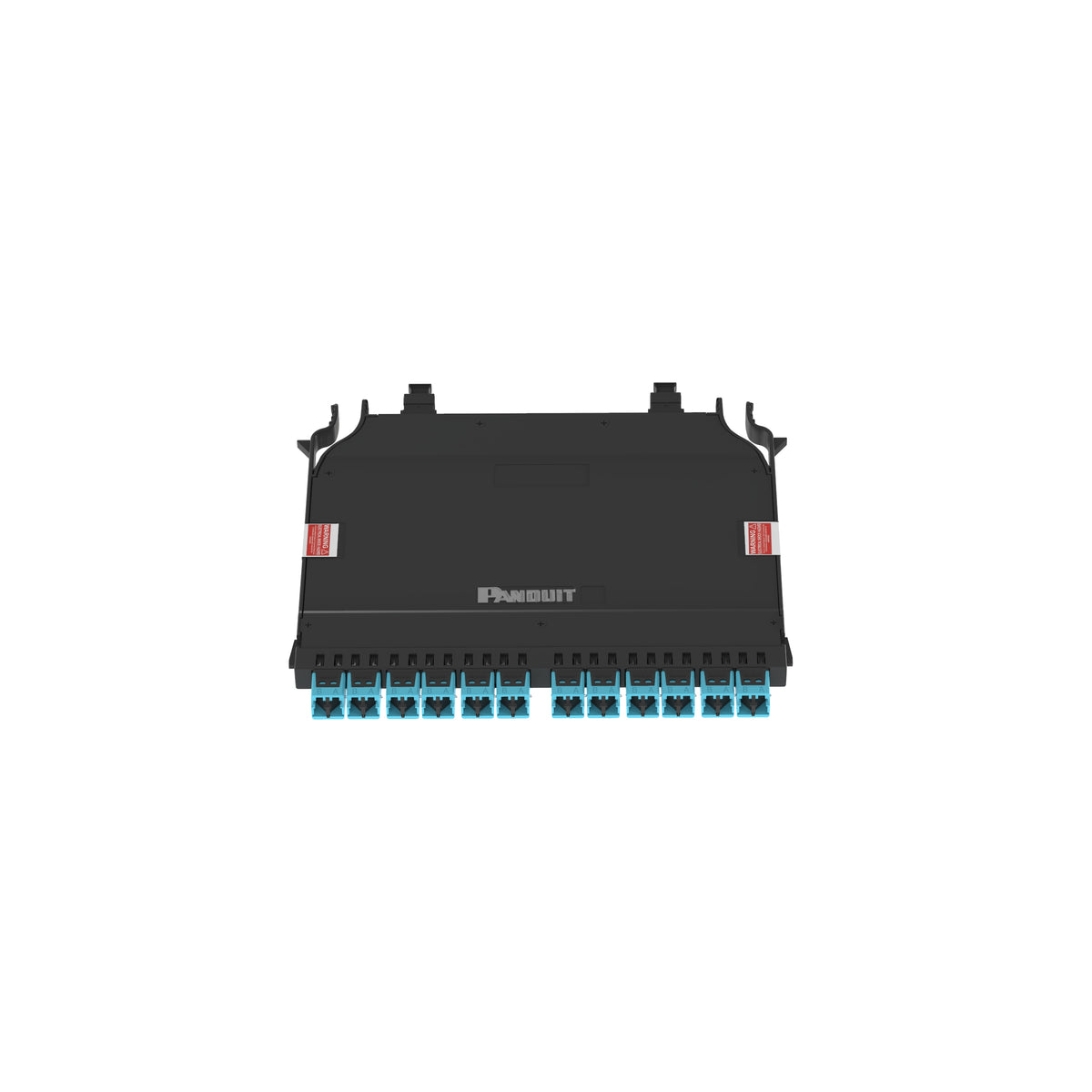

The HD Flex Cassette is OM4 MPO to LC and supports 12 fibers total. It is optimized IL and uses universal polarity. The cassette has a black cover with a black MPO connector and 6 aqua duplex LC adapters with integral shutters to prevent contamination.
Panduit - FHCZO-24-10U - Features
- Solid aluminum body with anodized aluminum finish provides improved durability and corrosion resistance
- Applications: Data Center Cabling, Cable Management
- Universal polarity
- Optimized insertion loss
Specifications
Specifications
Panduit - FHCZO-24-10U - Specifications
| Type | Splice Module |
|---|---|
| UNSPSC Code | 43223300 |
| Technical Information | Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant |
| Fiber Type | OM4 |
| Sub Brand | HD Flex™ |
| Number of Fibers | 24 |
| Number of Ports | 12 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| UPC | 61305656727 |
Panduit - FHCZO-24-10U - Package Information
| UPC | 61305656727 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0849 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.8491 |
