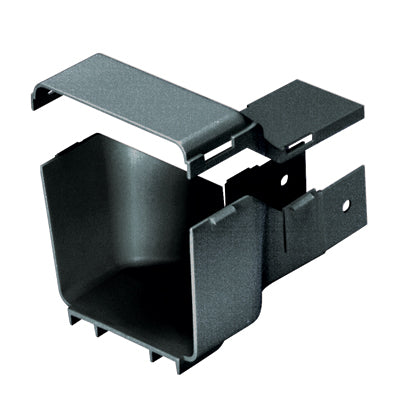

Panduit FRRF4FD2BL | FiberRunner® 4" x 4" to 2" x 2" Reducer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRRF4FD2BL | FiberRunner® 4" x 4" to 2" x 2&...
Description
Description
Panduit FiberRunner Reducer Fitting, For Use With: FiberRunner 4 x 4 in Routing System Fitting, 7.7 in L x 5.4 in W x 4.7 in H, 2 in Bend Radius, Snap-In Mount, ABS, Black
Connect 4" x 4" and 2" x 2" channels effortlessly with our reducer. Enhance your cable management and save space in data centers and network installations.
Attaches any 4x4 FiberRunner Fitting or Channel to the 2x2 Fiber-Duct Channel, S2X2BL6 or E2X2BL6 or 2x2 FiberRunner Channel, HS2X2BL6 or H2X2BL6. Note: Attachment to 2x2 FiberRunner Channel requires a QuikLock Coupler FBC2X2BL. Includes solid cover., Fitting/Cvr.,Reducer,4x4-2x2,BL,EA, Fitting and Cover, Reducer From 4" x 4" to 2" x 2" FiberRunner and Fiber-Duct BL
Panduit - FRRF4FD2BL - Features
- Without pulling eye
- Applications: Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. Used in Telco Central Offices to Route Fiber Optic Jumper Cables between Fiber Distribution Frames and Equipment Bays
- Accepts FRRF6FR4SCYL split cover
- Robust system of channel, covers, fittings and other non-metallic system components protect cable from physical damage, system includes full range of directional and spill out fittings
Specifications
Specifications
Panduit - FRRF4FD2BL - Specifications
| Components | Covers |
|---|---|
| UNSPSC Code | 39131712 |
| Technical Information | UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, RoHS Compliant |
| Product Type | Fiber Routing Reducer |
| Application | Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. Used in Telco Central Offices to Route Fiber Optic Jumper Cables between Fiber Distribution Frames and Equipment Bays |
| Color | Black |
| Connector 1 Type | 4" Exit |
| Connector 2 Type | 2" Exit |
| For Use With | Fiber Optic Jumper Cables |
| Includes | FiberRunner ® (1) 24X4,(1) 12x4, (1) 6x4, and (1) 2x2 Routing Systems, the Fiber-Duct ™ (1) 4x4 and (1) 2x2 Routing Systems, Wyr-Grid™ Overhead Cable Tray System, Cable Management, and Racks |
| Material | ABS |
| Overall Length (In.) | 7.75 |
| Overall Length (mm) | 196.8 |
| Overall Depth (In.) | 7.75 |
| Overall Depth (mm) | 196.8 |
| Overall Width (In.) | 5.42 |
| Overall Width (mm) | 137.7 |
| Overall Height (In.) | 4.74 |
| Overall Height (mm) | 120.4 |
| Sub Brand | FiberRunner® |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3,RoHS Compliant |
| System Dimensions | 4x4, 2x2 |
| UPC | 07498345108 |
Panduit - FRRF4FD2BL - Package Information
| UPC | 07498345108 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.2315 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.1577 |
