Brand: Panduit
|
SKU:
225131

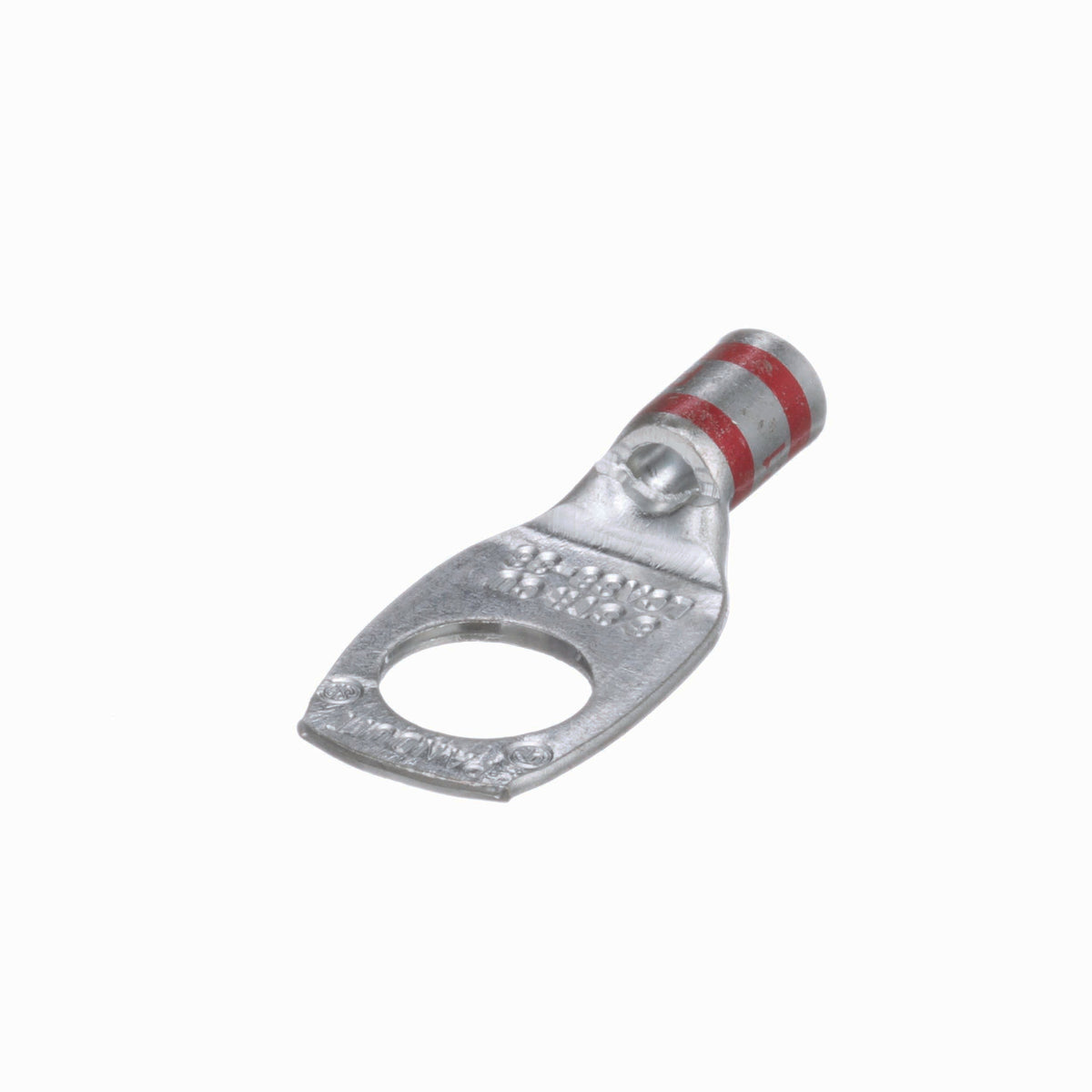

Panduit LCAS8-38-L | Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Regular price
$3.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAS8-38-L | Pan-Lug™ Copper 1 Hole Straight Tongue Compres...
Regular price
$3.45
Unit price
Description
Description
Panduit LCAS8-38-L | Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
One-hole, short barrel with window lug, #8 AWG wire, 3/8 stud hole.
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Panduit - LCAS8-38-L - Features
- Without pulling eye
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - LCAS8-38-L - Specifications
| Product Type | Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Short |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.7 |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.42 |
| Overall Length (mm) | 36.1 |
| UPC | 07498322520 |
Panduit - LCAS8-38-L - Package Information
| UPC | 07498322520 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0184 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
