Brand: Panduit | SKU: 10083337

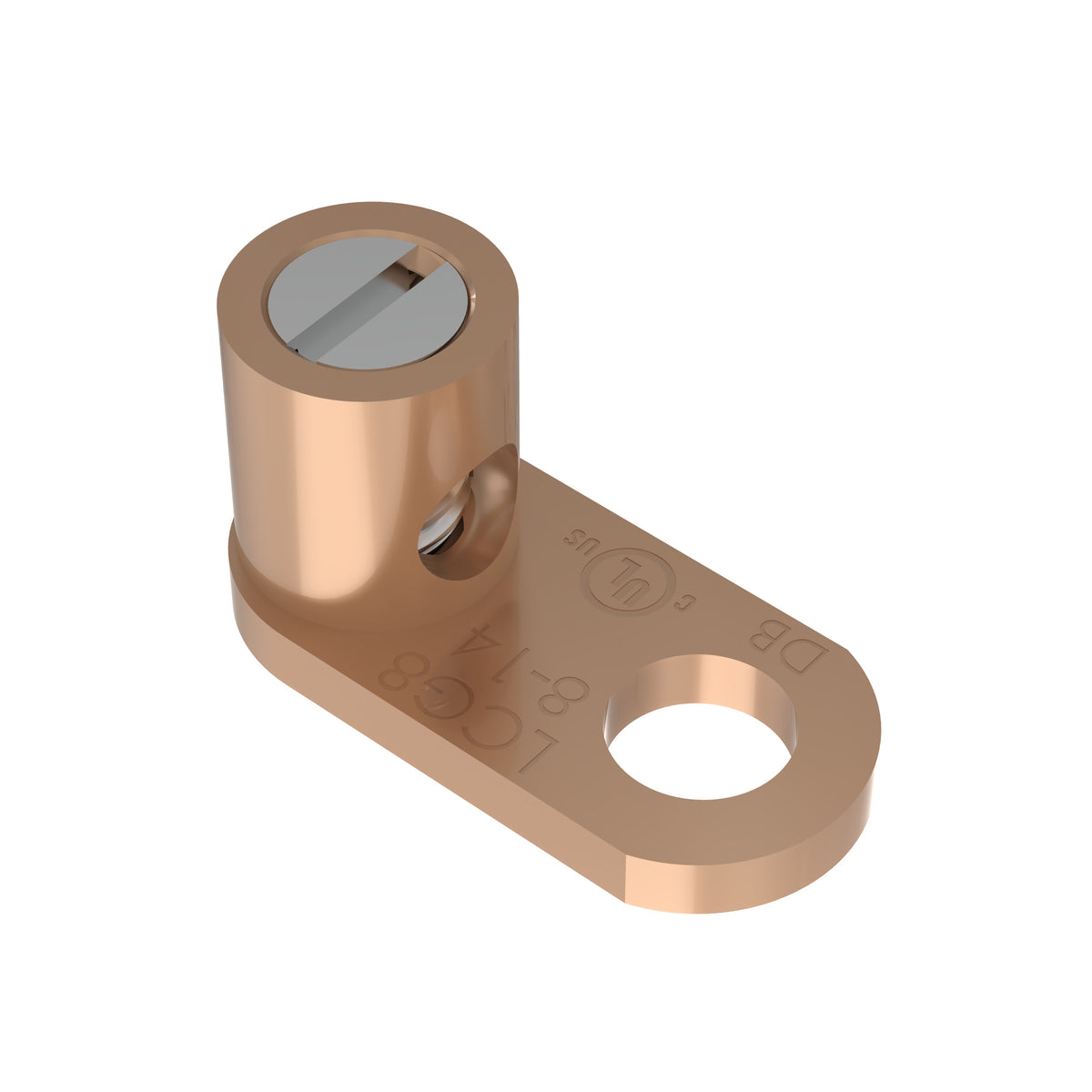

Panduit LCG8-C | Pan-Lug™ LCG Series Copper Ground Mechanical Lug

$7.59

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit LCG8-C | Pan-Lug™ LCG Series Copper Ground Mechanical Lug

Panduit Mechanical Lug, Ground, Solid/Stranded Copper Conductor, 14 to 8 AWG Conductor, 0.19 in Stud, 0.81 in L x 0.38 in W x 0.42 in H

Made from high-quality copper for optimal conductivity and strength, our mechanical lug features an inspection window for easy verification and a flat bottom for secure mounting.

Specifications

Panduit - LCG8-C - Specifications

Inspection Hole	No
Type	Mechanical
UNSPSC Code	39121400
Product Type	Mechanical Lug
Base Material	Copper
Number of Stud Holes	1
Barrel Type	Single Barrel
Tongue Type	Straight Tongue
Tongue Angle	Straight
Finish/Coating	Bare
Stud Hole Size (mm)	4.83
Screw Type	Slotted
Maximum Copper Conductor Size (AWG STR)	8
Minimum Copper Conductor Size (AWG SOL)	14
Tongue Width (In.)	0.38
Tongue Width (mm)	9.7
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	0.81
Overall Length (mm)	20.6
Overall Width (In.)	0.38
Overall Width (mm)	9.7
Overall Height (In.)	0.42
Overall Height (mm)	10.7
UPC	61305666976

Panduit - LCG8-C - Package Information

UPC	61305666976
Standard Packaging Quantity	100
Standard Packaging Volume (cf)	0.0328
Standard Ctn. Quantity	0
Standard Ctn. Volume (cf)	0.0000
