Panduit N8222WU | Net-Access™ N-Type Cabinet
Description
Description

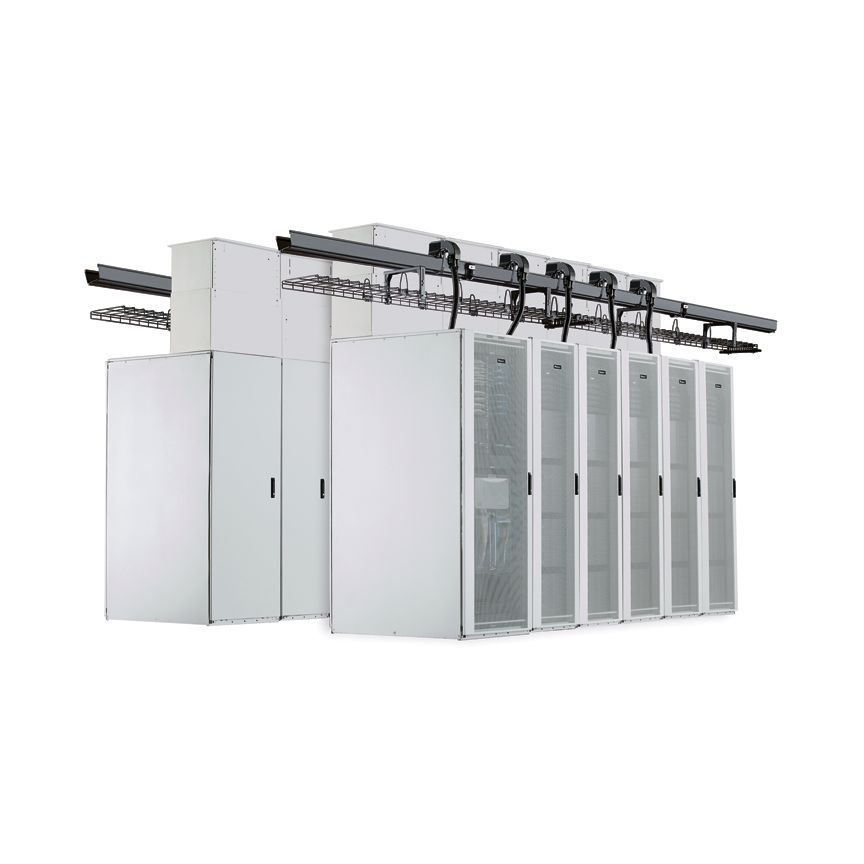

Net-Access N-Type Cabinet frame with top panel. 1 set of vertical blanking panels. Dual hinge perforated front door opens to the left or right. Split perforated rear doors open in the middle to minimize door swing footprint. Solid side panels (2). Two sets of cage nut equipment mounting rails. 42 RU cable management on front and rear of front posts. Dimensions: 78.8H x 31.5W x 48.0D (2000mm x 800mm x 1200mm). Color: White, Two sets of SN25F fingers Included.
Maximize your network efficiency with the N-type cabinet. Featuring dual-hinged doors, solid side panels, and integrated cable management, it ensures secure and organized equipment storage.
Panduit - N8222WU - Features
- Without pulling eye
Specifications
Specifications
Panduit - N8222WU - Specifications
| Sub Brand | Net-Access™ |
|---|---|
| Product Type | N-Type Cabinet |
| Rear Door Type | Door Split Hinged |
| Front Door Type | Door Dual Hinged |
| Color | White |
| Material | Steel |
| Overall Depth (In.) | 48 |
| Overall Width (In.) | 31.5 |
| Overall Width (mm) | 800 |
| Overall Height (In.) | 78.8 |
| Overall Height (mm) | 2000 |
| Number of Rack Units | 42 |
| Casters | No |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2500 |
| Finish/Coating | Powder-Coated |
| Standards Met | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
| NEMA Rating | 1 |
| UPC | 07498396815 |
Panduit - N8222WU - Package Information
| UPC | 07498396815 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 128.4809 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
