Description
Description

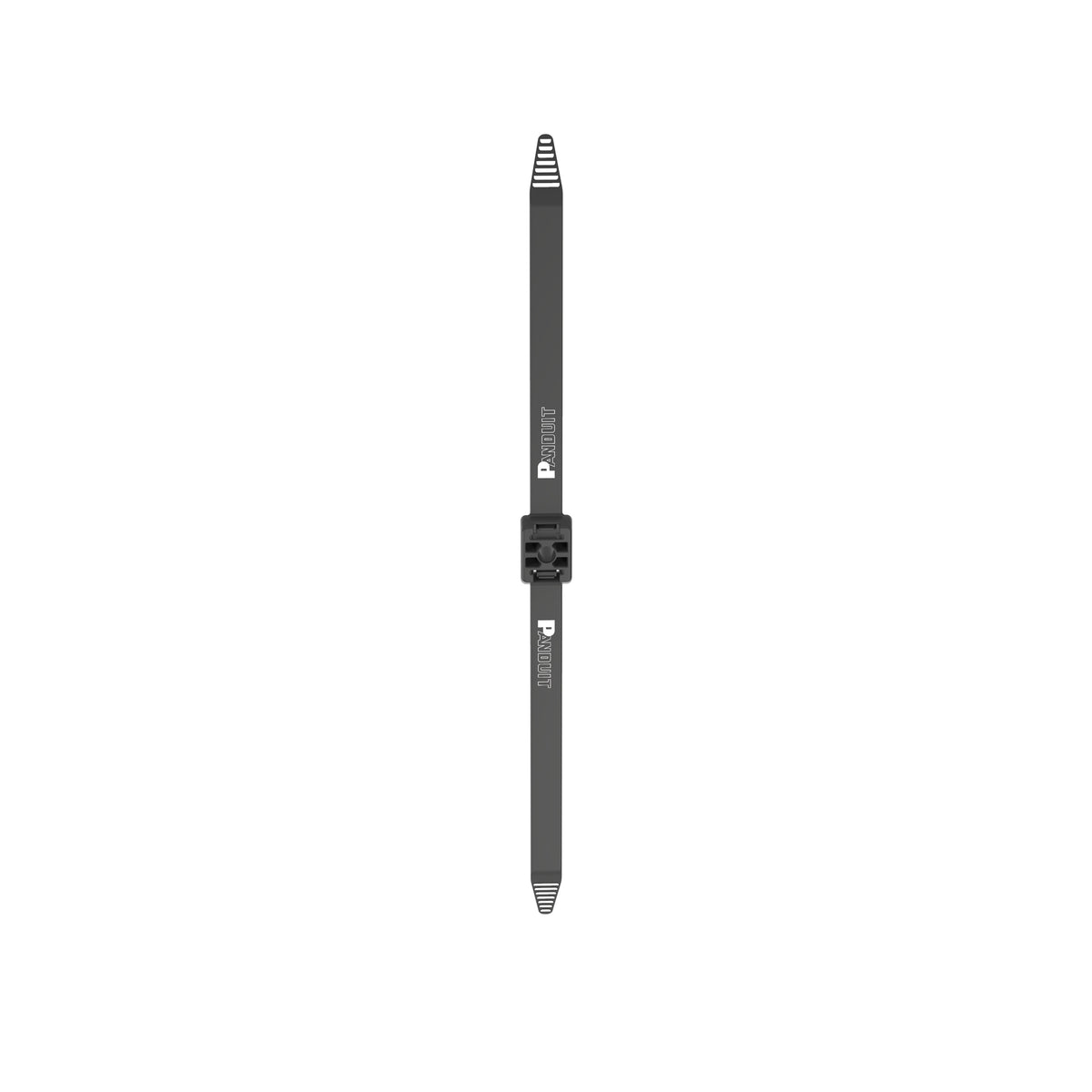

The Pan-Ty Double Clamp cable ties provide a cost effective way to secure and separate parallel hoses, tubing, wires and wiring bundles in an easy to install one-piece design. The Double Clamp cable tie has a strong 150 lbs. loop tensile strength to provide secure support for even high load applications. This new cable tie is ideal for heavy duty applications such as Truck and Heavy Equipment.
Panduit Pan-Ty Double Clamp Tie, Extra Heavy Heat Stabilized Impact Modified Weather Resistant, 19.2 in Length, 1/2 in Width, 0.055 in Thickness, 2.3 in Diameter Bundle, Lock Mechanism: Releasable/Reusable, 150 lb Tensile Strength, Nylon 6.6
Keep your cables neat and secure with our double clamp cable tie, allowing you to attach and separate parallel wires in heavy duty applications in extreme temperatures and UV exposure.
Panduit PLDC2.5EH-C350 Double Clamp cable ties provide a cost-effective way to secure and separate parallel hoses, tubing wires, and wiring bundles, in an easy to install one-piece design. Ideal for heavy duty applications such as truck and heavy equip ment. Extra-Heavy cross section, 19.2 (489 mm) length, made of Impact Modified Heat Stabilized Weather-resistant Nylon 6.6 with high resistance to ultraviolet light and high temperatures, are black in color, and come in packages of 100.
Panduit - PLDC2.5EH-C350 - Features
- Applications: Used to secure and separate parallel hoses, tubing, wires and wiring bundles in an easy to install one-piece design.
- One piece design
- Easy to install
- Mounting hole
- Versatile material
Specifications
Specifications
Panduit - PLDC2.5EH-C350 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | CE Compliant |
| Product Type | Double Clamp Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Material Properties | Impact-Modified |
| Resistance Properties | Heat-Resistant, UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 19.2 |
| Overall Length (mm) | 489 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.055 |
| Body Thickness (mm) | 1.4 |
| Maximum Bundle Diameter (In.) | 2.3 |
| Maximum Bundle Diameter (mm) | 58 |
| Minimum Bundle Diameter (In.) | 0.2 |
| Minimum Bundle Diameter (mm) | 5.1 |
| Minimum Loop Tensile Strength (N) | 667 |
| Minimum Loop Tensile Strength (lb) | 150 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 61305623548 |
Panduit - PLDC2.5EH-C350 - Package Information
| UPC | 61305623548 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.4572 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 2.2862 |
Panduit - PLDC2.5EH-C350 - Videos
| Panduit PLDC2.5EH-C350 Videos | Click to View |
|---|
