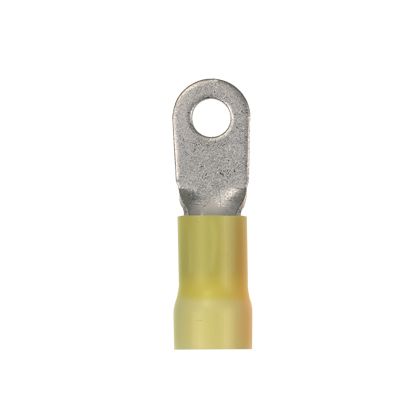

Panduit PV4-56R-E | Pan-Term® Vinyl Insulated Ring Terminal
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 4 AWG Conductor, 5/16 in Stud, 1.95 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 4 AWG, 5/16" stud size, vinyl insulated, standard package.
Panduit - PV4-56R-E - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PV4-56R-E - Specifications
| Type | Ring Terminal |
|---|---|
| UNSPSC Code | 39121400 |
| Technical Information | UL Listed 587H E52164 |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | 4 |
| Minimum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.8 |
| Barrel Length (mm) | 20.3 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.45 |
| UPC | 07498387103 |
Panduit - PV4-56R-E - Package Information
| UPC | 07498387103 |
|---|---|
| Standard Packaging Quantity | 20 |
| Standard Packaging Volume (cf) | 0.0098 |
| Standard Ctn. Quantity | 200 |
| Standard Ctn. Volume (cf) | 0.0976 |
