Panduit S12-50-C2 | StrongHold™ Cable Tie
Description
Description

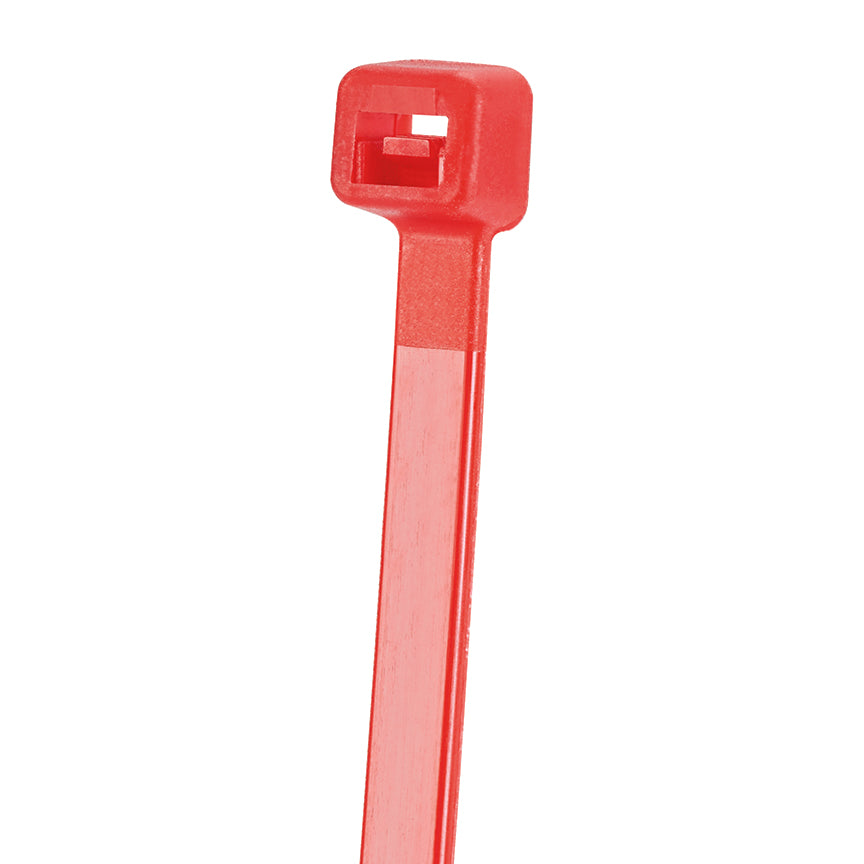

Panduit StrongHold Cable Tie, 11.81 in Length, 0.33 in Width, 0.06 in Thickness, 0.12 to 2.99 in Bundle Dia, 222.41 N Tensile, -40 to 185 deg F, Nylon 6.6, Red
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S12-50-C2 StrongHold Cable Ties offer contractors an economical cable tie option for commercial construction and general-purpose applications. Standard, 11.81 (300mm) length, made of Nylon 6.6, AH-2 Plenum rated, are red in color and come in packag es of 100.
Panduit - S12-50-C2 - Features
- 2.99 in enclosure
Specifications
Specifications
Panduit - S12-50-C2 - Specifications
| UNSPSC Code | 39121703 |
|---|---|
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Red |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.8 |
| Overall Length (mm) | 300 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.051 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 2.99 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.12 |
| Minimum Bundle Diameter (mm) | 3 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| UPC | 61305665626 |
Panduit - S12-50-C2 - Package Information
| UPC | 61305665626 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0352 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3522 |
Panduit - S12-50-C2 - Videos
| Panduit S12-50-C2 Video 1 | Click to View |
|---|---|
| Panduit S12-50-C2 Videos | Click to View |
