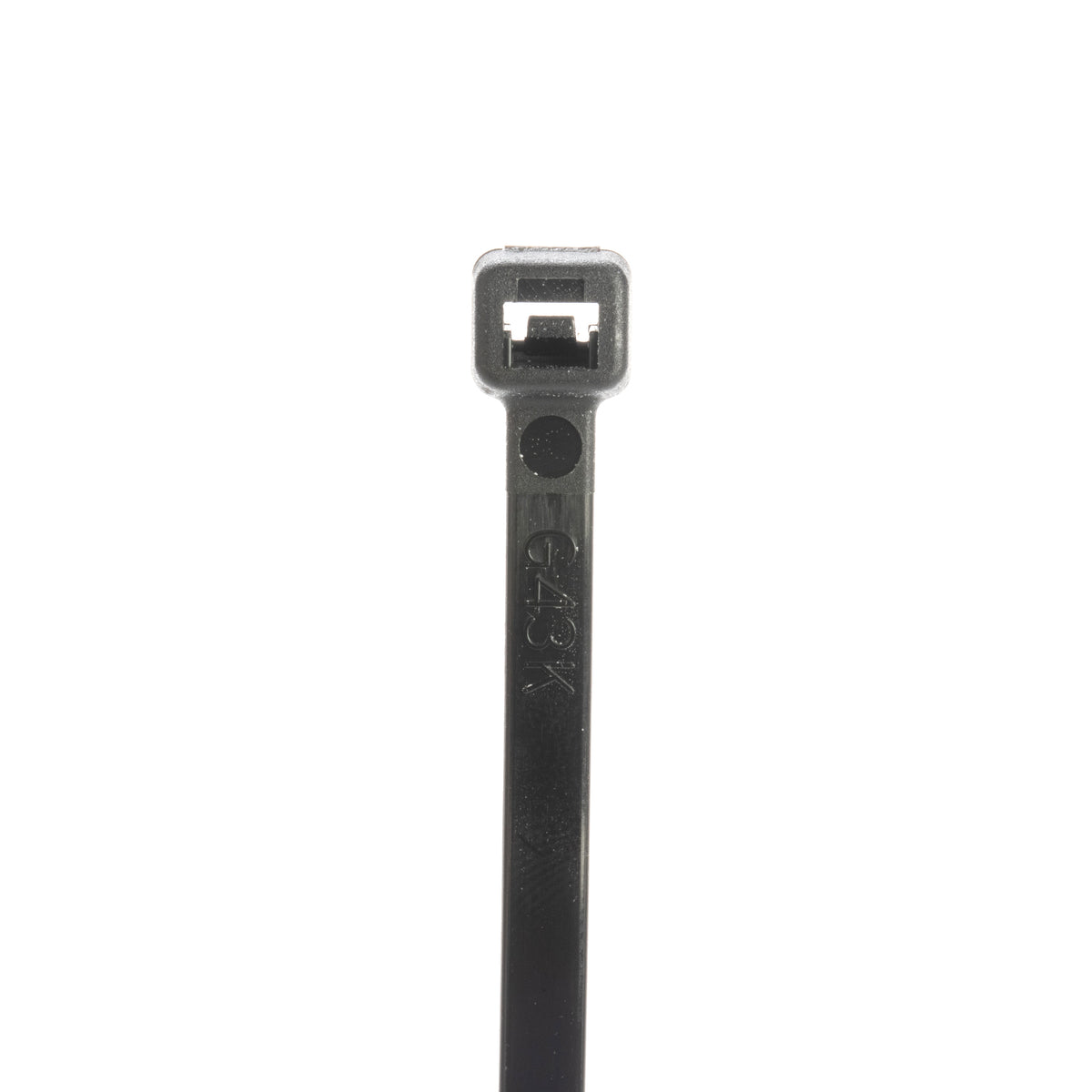

Panduit S14-120-TL0 | StrongHold™ Cable Tie
Description
Description
Panduit StrongHold Cable Tie, General Purpose Contractor Light-Heavy Straight Tip, 14.49 in Length, 0.3 in W, 0.06 in Thickness, 4.02 in Bundle Dia, Lock Mechanism: Locking, 120 lb Tensile, -40 to 185 deg F, Nylon 6.6, Black
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S14-120-TL0 StrongHold Cable Ties offers contractors an economical cable tie option for commercial construction and general-purpose applications. Light-heavy, 14.49 (368mm) length and are AH-2 Plenum rated. For outdoor use, made of Weather Resistan t Nylon 6.6, are black in color and come in packages of 250.
Panduit - S14-120-TL0 - Features
- Aluminum body and shackle with non-conductive vinyl cover delivers protection against electrical hazards for maximum safety
- Key retention feature means that key cannot be removed from padlock when open
- Standard locks are keyed differently each padlock is supplied with two key
- The two pieces design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low thread force reduces installer fatigue while increases productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - S14-120-TL0 - Specifications
| Cable Tie Diameter | 14" |
|---|---|
| Type | Cables Ties And Accessories |
| Size | 14" |
| UNSPSC Code | 39121703 |
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Black |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.063 |
| Body Thickness (mm) | 1.6 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.28 |
| Minimum Bundle Diameter (mm) | 7 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 61305634067 |
Panduit - S14-120-TL0 - Package Information
| UPC | 61305634067 |
|---|---|
| Standard Packaging Quantity | 250 |
| Standard Packaging Volume (cf) | 0.1981 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 1.9812 |
Panduit - S14-120-TL0 - Videos
| Panduit S14-120-TL0 Video 1 | Click to View |
|---|---|
| Panduit S14-120-TL0 Videos | Click to View |
