Panduit SGABM25-AT-C0 | Super-Grip® Adhesive Backed Cable Tie Mount
Description
Description

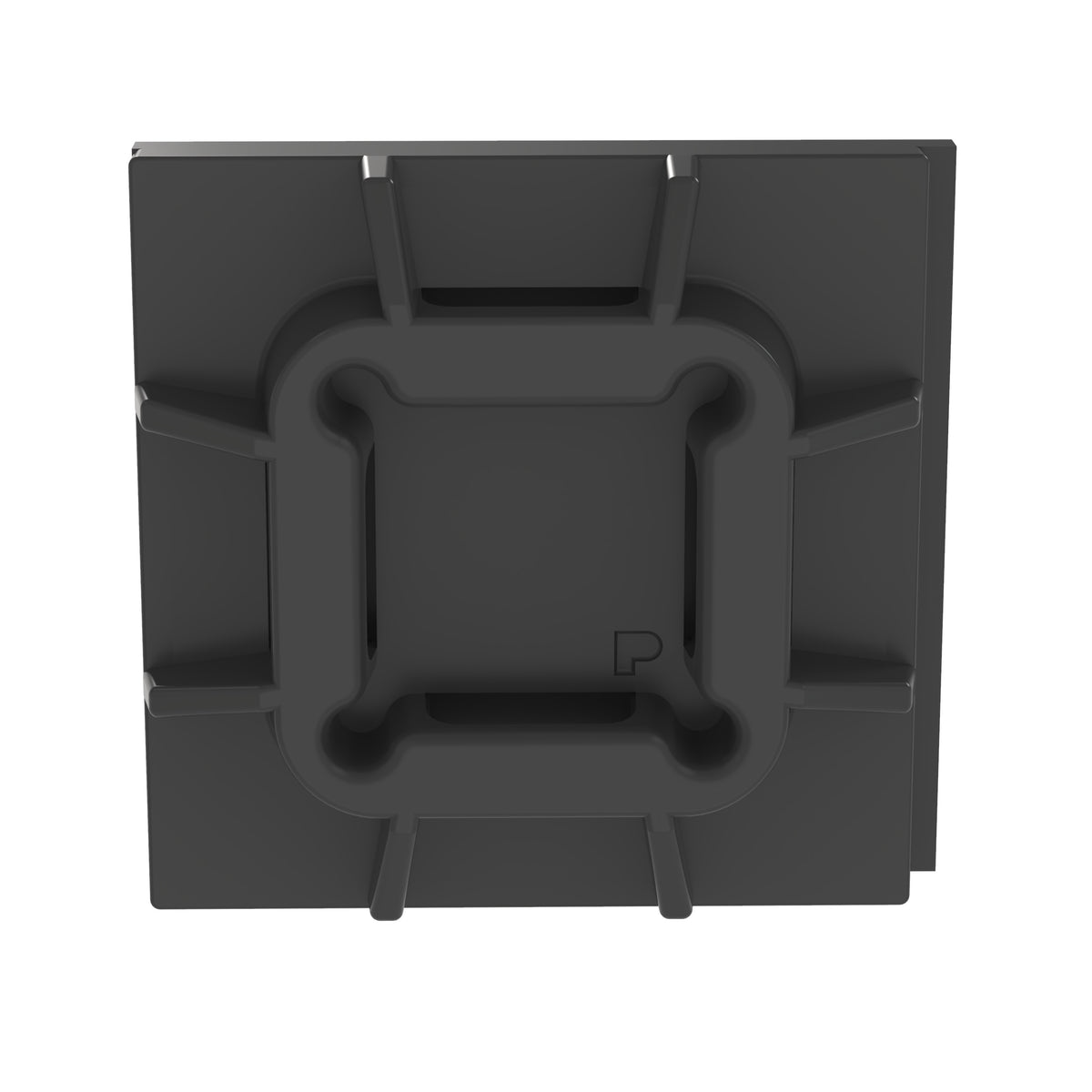

Panduit Cable Tie Mount, 4-Way Tie Entry, Acrylic Adhesive Tape Mount, 1 in Base Length, 1 in Base Width, Nylon, Black
Keep cables organized with our adhesive backed cable tie mount. This mount is durable and gives a neat setup in any environment, including tight spaces and high-temperature conditions.
The SGABM25-AT-C0 super grip acrylic-based adhesive backed cable tie mounts are made of weather resistant Nylon 6.6 and are for use with miniature and intermediate Super-Grip cross-section cable ties. Designed for outdoor use, especially in high-temper ature environments. They measure 1.0" x 1.0" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
Panduit - SGABM25-AT-C0 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: Low Profile Super-Grip Adhesive Backed Cable Tie Mounts, Used Where Space is Limited, to Keep Bundle Close to Mounting Surface and with Super-Grip Cable Ties
- Low profile design keeps bundle close to mounting surface
- Small overall size allows for use where space is limited
- Provides maximum adhesion, especially in harsh, high temperature, outdoor environments, extending service life
- Protect the cable bundle and the installer, improving productivity, jobsite safety and reliability
- Easily handled, improving productivity
- Polypropylene insulation
- Weather-resistant
- For high temperature operation
- For use with Super-Grip miniature, Super-Grip intermediate and Super-Grip standard cable ties
Specifications
Specifications
Panduit - SGABM25-AT-C0 - Specifications
| Type | Tapes |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, RoHS Compliant |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie Mount |
| Application | Low Profile Super-Grip ™ Adhesive Backed Cable Tie Mounts, Used Where Space is Limited, to Keep Bundle Close to Mounting Surface and with Super-Grip ™ Cable Ties |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.24 |
| Overall Height (mm) | 6.1 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant,RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| UPC | 07498352856 |
Panduit - SGABM25-AT-C0 - Package Information
| UPC | 07498352856 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0334 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3338 |
Panduit - SGABM25-AT-C0 - Videos
| Panduit SGABM25-AT-C0 Videos | Click to View |
|---|
