Mounting Hardware

Commscope ASPA320 | Pipe Mounting Kit for 1 - 2.8 in (25.4 - 73 mm) OD round members

Commscope DB365-OS | Pipe Mounting Kit that consists of two clamps for mounting antennas to round members 1.25 - 3.5 in (35 - 89 mm) OD round members.

Commscope DB365W | Pipe/Wall Mounting kit for 2.8 in (69.9 mm) OD round members. For mounting antennas to a wood pole or masonry all up to 10 inches in thickness.

Commscope BSAMNT-1 | Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains one scissor top bracket set and one bottom bracket set.

Commscope DB5004S-MTD | Fiberglass Outrigger Assembly for 3 in (76.2 mm) OD round members. This can be used on large side-mounted omni antennas. It is 123" (3.1m) long and attachable to the tower legs via one set of included DB375 clamps.

Commscope 800PIPEKIT-X | Cluster Mounting Kit. Use for mounting multiple wide panel antennas to a single pole or stand. One kit mounts up to three antennas. Removeable spacers allow this kit to fit on poles measuring 3.5, 4.5 or 5.5 in. OD.

Commscope DB365-SP5 | Pipe Mounting Kit that consists of two clamps for mounting antennas to round members 5 in (127.0 mm) OD round members

Commscope DB370 | Pipe Mounting Kit for 3.5 in (88.9 mm) OD round members (Similar to DB365-OS except center straps are not welded.)

Commscope ASPR614 | Side Mounting Kit for 1 - 2.9 in (25.4 - 73.0 mm) OD round members.

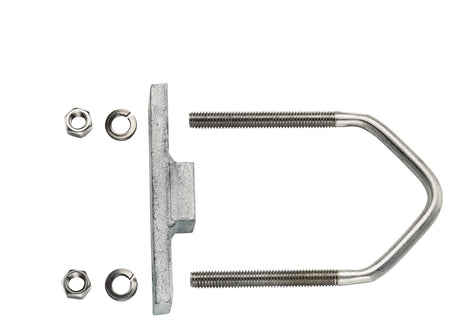

Commscope 11653 | V-Bolt Mounting Kit for 3 in (76.2 mm) max OD round members. Set of two V-bolts clamp sets.

Commscope DB5001-SP5 | VHF Side Mounting Kit for 5 in (127.0 mm) OD round members

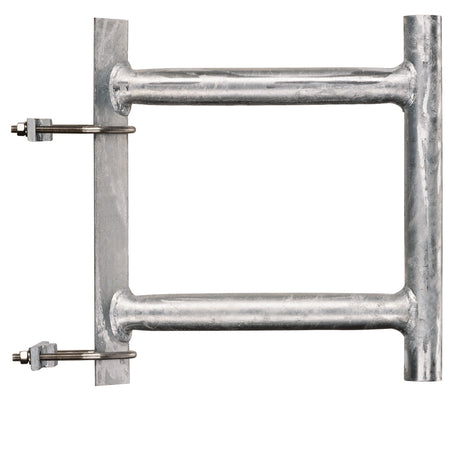

Commscope DB5007 | UHF Side Mounting Kit for 3 in (76.2 mm) OD round members. Bottom brace only.

Commscope 600899A-2 | Downtilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains one scissor top bracket set and one bottom bracket set.

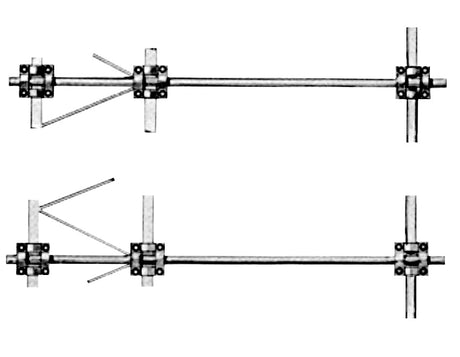

Commscope DB5004 | Adjustable Side Mounting Kit for 3 in (76.2 mm) OD round members. Use to mount all metal mast antennas away from side of tower measuring 2 to 8 feet (0.61 to 2.44 m) across the face. Two 10 foot sections of pipe and six clamp assembl

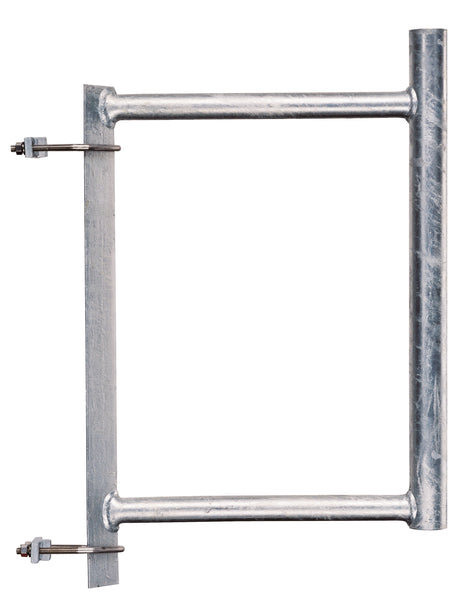

Commscope DB5001 | VHF Side Mounting Kit for 3 in (76.2 mm) OD round members. Includes top sway brace.

Commscope DB375 | Pipe Mounting Kit for 3 in (76.2 mm) OD round members. Mounting Clamps are used to mount horizontal members to vertical members. Set of two.
