Acceltex Solutions ATS-DRPMNT-UNIV1-OOOP | AP and Omni or Patch Antenna All-Thread Drop Mount
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acceltex Solutions ATS-DRPMNT-UNIV1-OOOP | AP and Omni or Patch Ant...
Description
Description

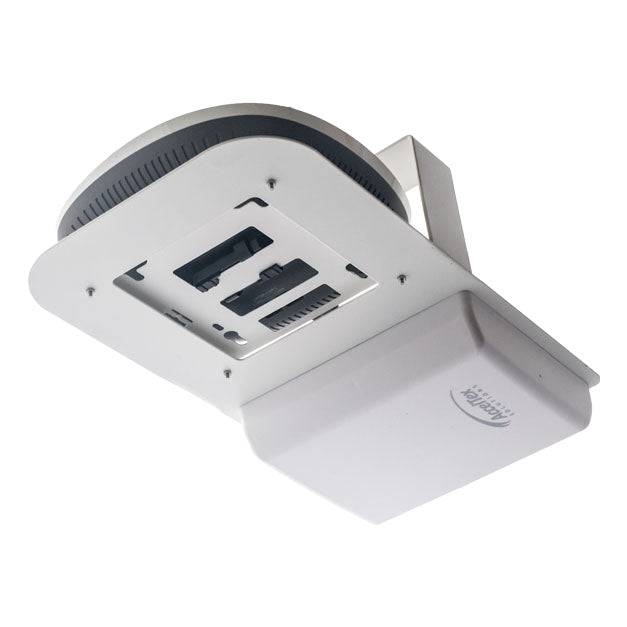

The AccelTex Solutions All-Thread Drop Mount provides a unique solution to mount a Cisco, Aruba or other T-Bar mounted AP and an AccelTex Omni or Patch antenna in one location using All-Thread. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. This mount can be used to lower the height of the antenna and AP in a building with high ceilings or can even be placed above a suspended ceiling. All-Thread and fasteners not included.
Acceltex Solutions - ATS-DRPMNT-UNIV1-OOOP - Features
- Dimensions: 16.1" L x 9.1" W x 4.2" H (410mm L x 230mm W x 106mm H)
- Weights: 3.15 lb (1.43 kg)
- Installation: 3/8" All Thread or Beam Clamp
- Color: White
- Material: Steel
- Installation Environment: Indoor
Specifications
Specifications
Acceltex Solutions - ATS-DRPMNT-UNIV1-OOOP - Specifications
| Type | Wireless |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 16.1" L x 9.1" W x 4.2" H (410mm L x 230mm W x 106mm H) |
| Weights | 3.15 lb (1.43 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | Indoor Wi-Fi |
| Applicable industries | Enterprise, Hospitality, Transportation, Warehouse |
| Compatible AP | Adtran/Bluesocket 1925, Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Adtran/Bluesocket 3045, Aruba/HP AP-103, Aruba/HP AP-204, Aruba/HP AP-205, Aruba/HP AP-207, Aruba/HP AP-214, Aruba/HP AP-215, Aruba/HP AP-224, Aruba/HP AP-225, Aruba/HP AP-304, Aruba/HP AP-305, Aruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-324, Aruba/HP AP-325, Aruba/HP AP-334, Aruba/HP AP-335, Aruba/HP AP-344, Aruba/HP AP-345, Aruba/HP AP-504 (with Aruba TBAR Adapter), Aruba/HP AP-505 (with Aruba TBAR Adapter), Aruba/HP AP-514 (with Aruba TBAR Adapter), Aruba/HP AP-515 (with Aruba TBAR Adapter), Aruba/HP AP-534 (with Aruba TBAR Adapter), Aruba/HP AP-535 (with Aruba TBAR Adapter), Aruba/HP AP-555 (with Aruba TBAR Adapter), Avaya WAO 9122, Cisco 1602e, Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3502e, Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Meraki MR42E, Cisco Meraki MR53E, Extreme AP 245X, Extreme AP 3715e, Extreme AP 3805e, Extreme AP 3825e, Extreme AP 3935e, Extreme AP1130, Meru/Fortinet AP 1010e, Meru/Fortinet AP 1020e, Meru/Fortinet AP 822e, Meru/Fortinet AP 832e, Meru/Fortinet FAP-223C, Meru/Fortinet FAP-423E, Meru/Fortinet FAP-C225C, Meru/Fortinet FAP-S313C, Meru/Fortinet FAP-S323C, Meru/Fortinet FAP-S323CR, Meru/Fortinet FAP-S422E, Meru/Fortinet FAP-S423E, Meru/Fortinet FAP-U423EV, Meru/Fortinet OAP-832e, Mist AP32E, Mist AP33, Mist AP41, Mist AP41E, Mist AP43, Mist AP43E |
| Installation Environment | Indoor |
| Installation | 3/8" All Thread or Beam Clamp |
Documents and Downloads
Documents and Downloads
