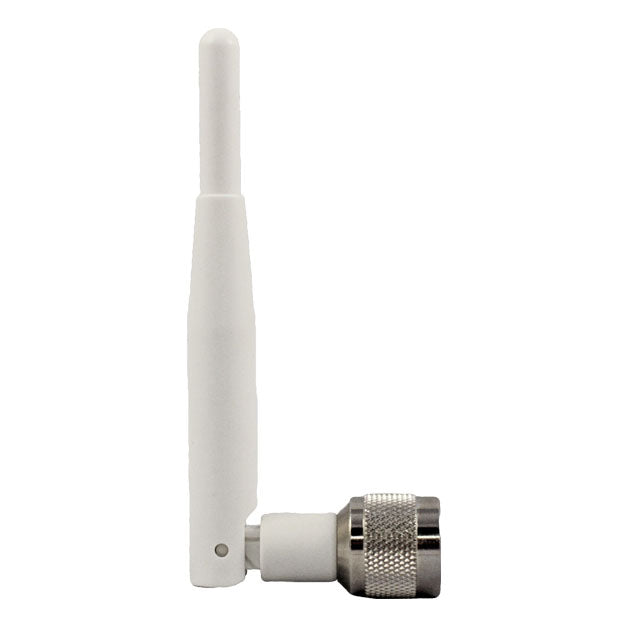

Acceltex Solutions ATS-ID90RD-245-23-1NP-IC-W | 2.4/5 GHz 2/3 dBi White Indoor Articulating Rubber Duck Antenna w/N-Style
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acceltex Solutions ATS-ID90RD-245-23-1NP-IC-W | 2.4/5 GHz 2/3 dBi W...
Description
Description
The AccelTex Solutions dual band indoor rubber duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna also articulates 90 degrees and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.
Acceltex Solutions - ATS-ID90RD-245-23-1NP-IC-W - Features
- Antenna Type: Omni
- Frequency Range: 2.4-2.5/4.9-5.85 GHz
- Gain: 2/3 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 360
- VSWR: Max 2.0
- Impedance: 50 ohms
- Dimensions: 0.51" DIA x 5.4" L (13mm DIA x 138.6mm L)
- Installation: Direct Connect to Radio
- ati
Specifications
Specifications
Acceltex Solutions - ATS-ID90RD-245-23-1NP-IC-W - Specifications
| Device | Antenna |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 0.51" DIA x 5.4" L (13mm DIA x 138.6mm L) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | Indoor Wi-Fi, Outdoor Wi-Fi |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Adtran/Bluesocket 1940, Adtran/Bluesocket 2135, Arista O-235E, Aruba/HP AP-274, Aruba/HP AP-374, Aruba/HP AP-574, Cisco 1532e, Cisco 1562e, Cisco 1562ps, Cisco 1572eac, Cisco 1572ec, Cisco Meraki MR62, Cisco Meraki MR66, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR84, Extreme AP 3865, Extreme AP 3965e, Extreme AP1130, Extreme AP360E, Extreme AP460e, Extreme WiNG AP 7562, Extreme WiNG AP 8163, Mist AP61E, Mist AP63E |
| Installation Environment | Indoor |
| Installation | Direct Connect to Radio |
