Acceltex Solutions ATS-OHDP-245-13-3NJ-IC | 2.4/5 GHz 13 dBi 3 Elem...
Description
Description

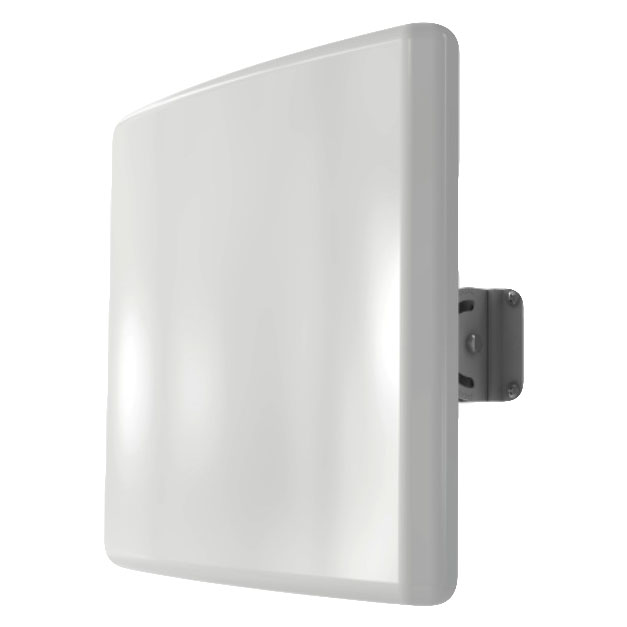

The AccelTex Solutions high density dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve focused, directional coverage in your indoor or outdoor space. With a narrower beamwidth than most patch antennas and both horizontal and vertical polarized antenna elements, this antenna is purpose-built to provide a very focused coverage pattern suitable for high density deployments. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated connectors and ships with our articulating wall and pole mount kit for precise antenna positioning. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Acceltex Solutions - ATS-OHDP-245-13-3NJ-IC - Features
- Antenna Type: High Density Patch
- Frequency Range: 2.4/5 GHz
- Gain: 13 dBi
- Polarization: 2 Vertical 1 Horizontal
- Horizontal Beamwidth: 40 (H), 40 (V)/30 (H), 35 (V)
- Vertical Beamwidth: 40 (H), 40 (V)/35 (H), 30 (V)
- VSWR: < 2.0: 1
- Isolation: > 20 dB
- nce
Specifications
Specifications
Acceltex Solutions - ATS-OHDP-245-13-3NJ-IC - Specifications
| Device | Antenna |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 13.8" H x 13.8" W x 1.8" D (350mm H x 350mm W x 45 mm D) |
| Weights | 1.8 lb (0.8 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Cisco 1602e, Extreme WiNG AP 7532, Meru/Fortinet FAP-S313C, Meru/Fortinet FAP-S323C, Meru/Fortinet FAP-S323CR |
| Wind Velocity | 130 mph (210 km/h) |
| Installation Environment | Indoor or Outdoor |
| Pole mount diameter | 2" (50mm) |
| Installation | Articulating Wall/Pole Mount |
