Acceltex Solutions ATS-OO-245-34-4RPSP-36 | 2.4/5 GHz 3/4 dBi 4 Ele...
Description
Description

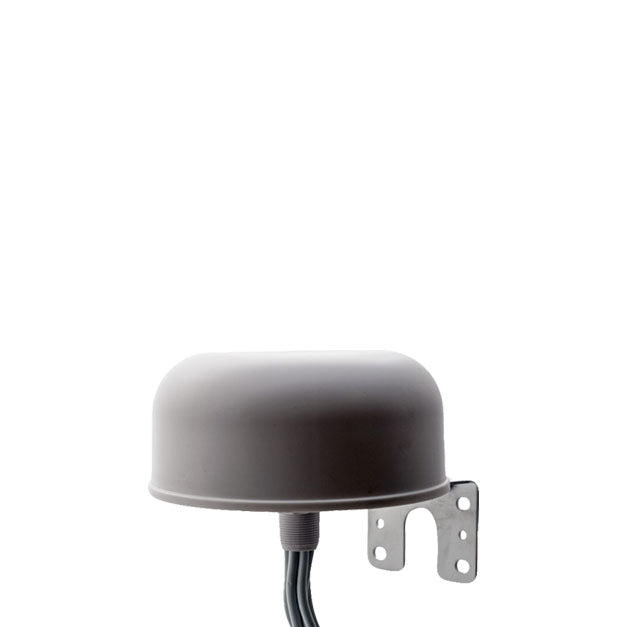

The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.
Acceltex Solutions - ATS-OO-245-34-4RPSP-36 - Features
- Antenna Type: Omni
- Frequency Range: 2.4-2.5/4.9-5.85 GHz
- Gain: 3/4 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 360
- Vertical Beamwidth: 78/50
- VSWR: < 2.0: 1
- Isolation: > 20 dB
- Impedance: 50 ohms
- Lighting Protection: None
- Max Input Power: 100sio
Specifications
Specifications
Acceltex Solutions - ATS-OO-245-34-4RPSP-36 - Specifications
| Device | Antenna |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 4.7" DIA x 1.4" H (120mm DIA x 35mm H) |
| Weights | 0.4 lb (0.2 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | Indoor Wi-Fi, Outdoor Wi-Fi |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Adtran/Bluesocket 1925, Aruba/HP AP-314, Aruba/HP AP-324, Aruba/HP AP-334, Aruba/HP AP-514, Aruba/HP AP-534, Extreme AP 3805e, Extreme AP305CX, Extreme AP310E, Meru/Fortinet AP 1020e, Meru/Fortinet AP 822e, Meru/Fortinet FAP-223C, Meru/Fortinet FAP-224D, Meru/Fortinet FAP-C225C, Mist AP32E, Mist AP41E |
| Wind Velocity | 130 mph (210 km/h) |
| Installation Environment | Indoor or Outdoor |
| Pole mount diameter | 2" (50mm) |
| Installation | Threaded Bolt with Nut and Wall/Pole Mount |
