Acceltex Solutions ATS-OO-245-46-4NP-36 | 2.4/5 GHz 4/6 dBi 4 Element Indoor/Outdoor Omni Antenna with N-Style
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acceltex Solutions ATS-OO-245-46-4NP-36 | 2.4/5 GHz 4/6 dBi 4 Eleme...
Description
Description

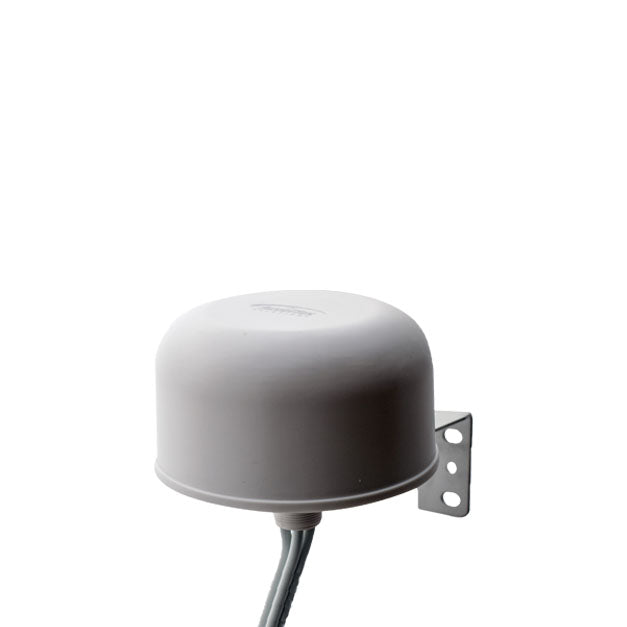

The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.
Acceltex Solutions - ATS-OO-245-46-4NP-36 - Features
- Antenna Type: Omni
- Frequency Range: 2.4-2.5/4.9-5.85 GHz
- Gain: 4/6 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 360
- Vertical Beamwidth: 144/55
- VSWR: < 2.0: 1
- Isolation: > 20 dB
- Impedance: 50 ohms
- Lighting Protection: DC Grounded
- Max Input Po W
Specifications
Specifications
Acceltex Solutions - ATS-OO-245-46-4NP-36 - Specifications
| Device | Antenna |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 4.7" DIA x 2.8" H (120mm DIA x 70mm H) |
| Weights | 0.5 lb (0.22 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | Indoor Wi-Fi, Outdoor Wi-Fi |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Cisco 1532e, Cisco 1562e, Cisco 1562ps, Cisco 1572eac, Cisco 1572ec, Cisco Meraki MR66, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR84, Extreme AP1130, Extreme AP360E, Mist AP61E |
| Wind Velocity | 130 mph (210 km/h) |
| Installation Environment | Indoor or Outdoor |
| Pole mount diameter | 2" (50mm) |
| Installation | Threaded Bolt with Nut and Wall/Pole Mount |
