Acceltex Solutions ATS-OP-245-810-6RPTP-36 | 2.4/5 GHz 8/10 dBi 6 Element Indoor/Outdoor Patch Antenna with RPTNC
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acceltex Solutions ATS-OP-245-810-6RPTP-36 | 2.4/5 GHz 8/10 dBi 6 E...
Description
Description

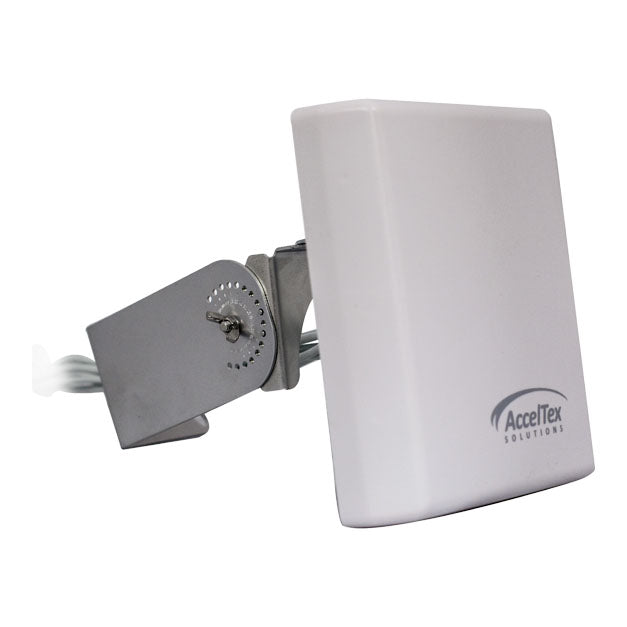

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Acceltex Solutions - ATS-OP-245-810-6RPTP-36 - Features
- Antenna Type: Patch
- Frequency Range: 2.4-2.5/4.9-5.85 GHz
- Gain: 8/10 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 88/32
- Vertical Beamwidth: 77/43
- VSWR: < 2.0: 1
- Isolation: > 20 dB
- Impedance: 50 ohms
- Lighting Protection: DC Grounded
- Max Input100
Specifications
Specifications
Acceltex Solutions - ATS-OP-245-810-6RPTP-36 - Specifications
| Device | Antenna |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 8.1" H x 7.0" W x 1.8" D (207mm H x 177mm W x 46mm D) |
| Weights | 1.2 lb (0.5 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | Carpeted Space, Indoor Wi-Fi, Outdoor Wi-Fi |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Cisco 3502e, Cisco Meraki MR46E, Cisco Meraki MR53E |
| Wind Velocity | 130 mph (210 km/h) |
| Installation Environment | Indoor or Outdoor |
| Pole mount diameter | 2" (50mm) |
| Installation | Threaded Bolt with Nut and Articulating Wall/Pole Mount |
