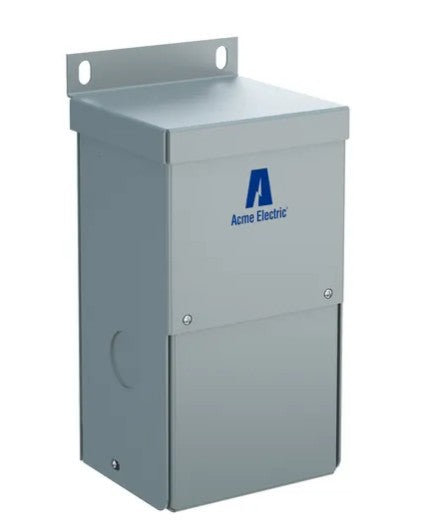

Acme Electric T153005 | Low Voltage Distribution Transformer, 0.1 KVA, 1, 120/240 V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acme Electric T153005 | Low Voltage Distribution Transformer, 0.1 K...
Description
Description
Low Voltage Distribution Transformer; Kilovolt-Amperes: 0.1 KVA; Phase: 1; Voltage: 120/240 V; Case Style: Encapsulated; Construction: Encapsulated; Dimensions: LxWxH: 3.67 x 3.89 x 7.16 in.; Enclosure: NEMA 3R; Enclosure Rating: NEMA 3R; Frequency: 50/60 Hz; Frequency Rating: 50/60 Hz; KVA: 0.1; Mounting: Wall; Primary Main Breaker: 240 x 480 V; Secondary Main Breaker: 120/240 V; Taps: 2%; Temperature Rise: 115 C; Transformer Type: Low Voltage, Dry; Volts, Primary: 240 x 480 V; Volts, Secondary: 120/240 V; Weight: 5 lb.; Winding: Copper; Approvals/Ratings: CSA, UL
Specifications
Specifications
Acme Electric - T153005 - Product Categories
- Power Products
- Power Distribution and Protection
- Transformers and Accessories
- Dry Type Transformers
Acme Electric - T153005 - Specifications
| Manufacturer Name | Acme Electric |
|---|---|
| Manufacturer Part Number | T153005 |
| Item Description | Low Voltage Distribution Transformer, 0.1 KVA, 1, 120/240 V |
| Case Style | Encapsulated |
| Construction | Encapsulated |
| Dimensions | LxWxH: 3.67 x 3.89 x 7.16 in. |
| Enclosure HxWxD | HxWxD: 7.16 x 3.89 x 3.67 in. |
| Enclosure Rating | NEMA 3R |
| Enclosure | NEMA 3R |
| Frequency Rating | 50/60 Hz |
| Frequency | 50/60 Hz |
| KVA | 0.1 |
| Kilovolt-Amperes | 0.1 KVA |
| Mounting | Wall |
| Phase | 1 |
| Primary Main Breaker | 240 x 480 V |
| Product Type | Low Voltage Distribution Transformer |
| RATING | IP20 |
| Secondary Main Breaker | 120/240 V |
| Taps | 2% |
| Temperature Rise | 115 C |
| Transformer Type | Low Voltage, Dry |
| Type | Dry Type Distribution Transformer |
| Voltage | 120/240 V |
| Voltage, Primary | 240 x 480 V |
| Voltage, Secondary | 120/240 V |
| Weight | 5 lb. |
| Winding | Copper |
