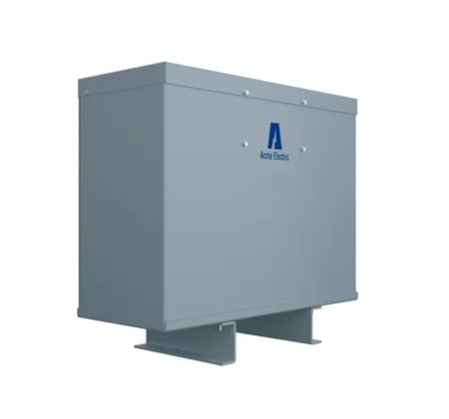

Acme Electric T3533411S | Low Voltage Distribution Transformer, 15 KVA, 3, 240/120 V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acme Electric T3533411S | Low Voltage Distribution Transformer, 15 ...
Description
Description
Low Voltage Distribution Transformer; Kilovolt-Amperes: 15 KVA; Phase: 3; Voltage: 240/120 V; Case Style: Encapsulated; Construction: Encapsulated; Dimensions: LxWxH: 9.03 x 20.3 x 18.86 in.; Enclosure: NEMA 3R; Enclosure Rating: NEMA 3R; Frequency: 60 HZ; Frequency Rating: 60 HZ; KVA: 15; Mounting: Floor; Primary Main Breaker: 480 V; Secondary Main Breaker: 240/120 V; Taps: 2%; Temperature Rise: 150 C; Transformer Type: Low Voltage, Dry; Volts, Primary: 480 V; Volts, Secondary: 240/120 V; Weight: 250 lb.; Winding: Copper; Approvals/Ratings: CSA, UL
Specifications
Specifications
Acme Electric - T3533411S - Product Categories
- Power Products
- Power Distribution and Protection
- Transformers and Accessories
- Dry Type Transformers
Acme Electric - T3533411S - Specifications
| Manufacturer Name | Acme Electric |
|---|---|
| Manufacturer Part Number | T3533411S |
| Item Description | Low Voltage Distribution Transformer, 15 KVA, 3, 240/120 V |
| Case Style | Encapsulated |
| Construction | Encapsulated |
| Dimensions | LxWxH: 9.03 x 20.3 x 18.86 in. |
| Enclosure HxWxD | 18.86x20.30x9.03" (47.9x51.6x9.03cm) |
| Enclosure Rating | NEMA 3R |
| Enclosure | NEMA 3R |
| Frequency Rating | 60 HZ |
| Frequency | 60 HZ |
| KVA | 15 |
| Kilovolt-Amperes | 15 KVA |
| Mounting | Floor |
| Phase | 3 |
| Primary Main Breaker | 480 V |
| Product Type | Low Voltage Distribution Transformer |
| Secondary Main Breaker | 240/120 V |
| TYPE | TRANSFORMERS |
| Taps | 2% |
| Temperature Rise | 150 C |
| Transformer Type | Low Voltage, Dry |
| Type | General Purpose Transformer |
| Voltage | 240/120 V |
| Voltage, Primary | 480 V |
| Voltage, Secondary | 240/120 V |
| Weight | 250 lb. |
| Winding | Copper |
