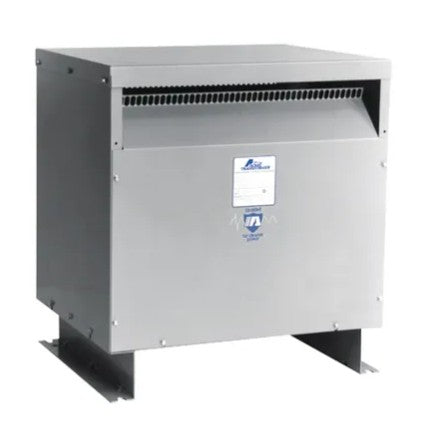

Acme Electric TP530193S | Low Voltage Distribution Transformer, 37.5 KVA, 1, 120/240 V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acme Electric TP530193S | Low Voltage Distribution Transformer, 37....
Description
Description
Low Voltage Distribution Transformer; Kilovolt-Amperes: 37.5 KVA; Phase: 1; Voltage: 120/240 V; Case Style: Ventilated; Construction: Ventilated; Dimensions: LxWxH: 19.37 x 24.39 x 25.5 in.; Enclosure: NEMA 3R; Enclosure Rating: NEMA 3R; Frequency: 60 HZ; Frequency Rating: 60 HZ; KVA: 37.5; Mounting: Floor; Primary Main Breaker: 240 x 480 V; Secondary Main Breaker: 120/240 V; Taps: 2%; Temperature Rise: 150 C; Transformer Type: Low Voltage, Dry; Volts, Primary: 240 x 480 V; Volts, Secondary: 120/240 V; Weight: 280 lb.; Winding: Copper; Approvals/Ratings: CSA, UL
Specifications
Specifications
Acme Electric - TP530193S - Product Categories
- Power Products
- Power Distribution and Protection
- Transformers and Accessories
- Dry Type Transformers
Acme Electric - TP530193S - Specifications
| Manufacturer Name | Acme Electric |
|---|---|
| Manufacturer Part Number | TP530193S |
| Item Description | Low Voltage Distribution Transformer, 37.5 KVA, 1, 120/240 V |
| Case Style | Ventilated |
| Construction | Ventilated |
| Dimensions | LxWxH: 19.37 x 24.39 x 25.5 in. |
| Enclosure HxWxD | 25.50x24.39x19.37" (64.8x61.9x49.2cm) |
| Enclosure Rating | NEMA 3R |
| Enclosure | NEMA 3R |
| Frequency Rating | 60 HZ |
| Frequency | 60 HZ |
| KVA | 37.5 |
| Kilovolt-Amperes | 37.5 KVA |
| Mounting | Floor |
| Phase | 1 |
| Primary Main Breaker | 240 x 480 V |
| Product Type | Low Voltage Distribution Transformer |
| RATING | IP20 |
| Secondary Main Breaker | 120/240 V |
| Taps | 2% |
| Temperature Rise | 150 C |
| Transformer Type | Low Voltage, Dry |
| Type | General Purpose Transformer |
| Voltage | 120/240 V |
| Voltage, Primary | 240 x 480 V |
| Voltage, Secondary | 120/240 V |
| Weight | 280 lb. |
| Winding | Copper |
