Brand: Acti Corp. Usa
|
SKU:
10500277

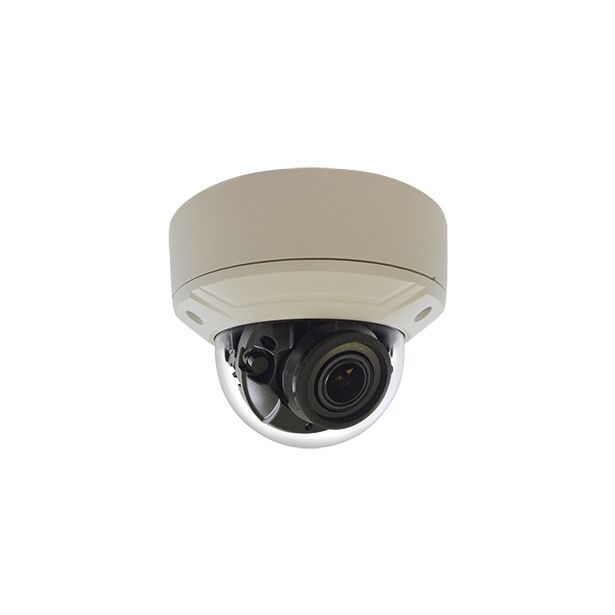

Acti A820 | 4MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens
Regular price
$1,236.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acti A820 | 4MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, ...
Regular price
$1,236.10
Unit price
Brand: Acti Corp. Usa
|
SKU:
10500277
Regular price
$1,236.10
Unit price
Shipping calculated at checkout.
Description
Description
Acti A820 | 4MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens
Acti - A820 - Features
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and IR LED
- Extreme WDR
- Super wide angle
- Taiwan IoT Cybersecurity Certification Level 1 (TAICS)
- Event trigger, response and notification
Specifications
Specifications
Acti - A820 - Specifications
| roduct Type | Zoom Dome |
|---|---|
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Effective Pixels | 2688(H) X 1520(V) (4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | IR LED x 3 (850 nm) |
| IR Working Distance | 85m |
| Electronic Shutter | 1/5-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Focal Length | Zoom, f2.7-13.5mm |
| Aperture | F1.6 |
| Zoom Ratio | 5x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 102.8° - 32.4° |
| Vertical Viewing Angle | 54.9° - 18.9° |
| Viewing Angle Adjustment | Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355° |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.5 W (PoE) |
| Dimensions | (Ø x H): 141mm x 99.5mm (5.55" x 3.9") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Mount Type | Wall Mount, Pole Mount, Pendant, Corner Mount |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Approvals | CE Class B, FCC Class B, IP68, IK10, UL Listed, Taiwan IoT Cybersecurity Certification Level 1 (TAICS) |
| Color | White |
| Real-time Clock (RTC) | Yes |
