Brand: Acti Corp. Usa
|
SKU:
716267

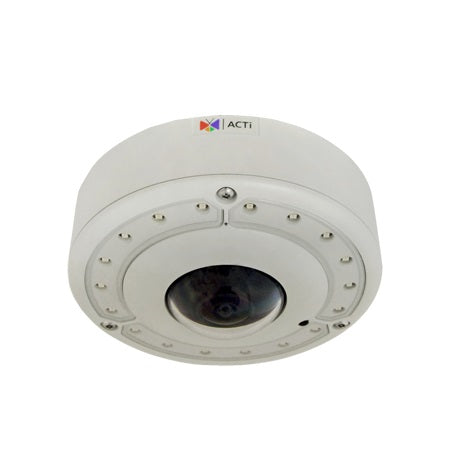

ACTi B76A | 12 Megapixel Outdoor Hemispheric Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 1.65 Fixed Lens
Regular price
$2,267.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
ACTi B76A | 12 Megapixel Outdoor Hemispheric Dome Camera with Day/N...
Regular price
$2,267.75
Unit price
Brand: Acti Corp. Usa
|
SKU:
716267
Regular price
$2,267.75
Unit price
Shipping calculated at checkout.
Description
Description
ACTi B76A | 12 Megapixel Outdoor Hemispheric Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 1.65 Fixed Lens
12MP Video Analytics Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f1.65mm/F2.8 (HOV:198.5° (overview area), 121.1° (high detail area)), H.264, Dewarping, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO, Built-in Analytics
Acti - B76A - Features
- 12 Megapixel with 4K Ultra HD
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fisheye Lens with f1.65mm/F2.8
- Extreme WDR
- 360°/180° Panorama View with Dewarped Streaming
- Overview, Zoom and Tracking (OZT)
- Built-in Analytics
Specifications
Specifications
Acti - B76A - Specifications
| Product Type | Hemispheric Dome |
|---|---|
| Maximum Resolution | 12MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.7 " |
| Effective Pixels | 4072(H) X 3046(V) (12.4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F2.8; B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED x 18 (850 nm) |
| IR Working Distance | 20m |
| Electronic Shutter | 1/5-1/16000 second (manual mode); 1/5-1/16000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 2250 TVL |
| S/N Ratio | 75 dB |
| Focal Length | Fixed focal, f1.65mm |
| Aperture | F2.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 198.5° (overview area)121.1° (high detail area) |
| Vertical Viewing Angle | 198.5°(Fisheye View) |
| Viewing Angle Adjustment | Rotation: -175°-175° |
| Overview, Zoom and Tracking (OZT) technology | Yes (Pair of intelligent hemispheric camera with I95, I96, I97, I98 and I915 speed dome camera) |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Form Factor | Dome |
| UNSPSC Code | 46171610 |
