Brand: Acti Corp. Usa
|
SKU:
716272

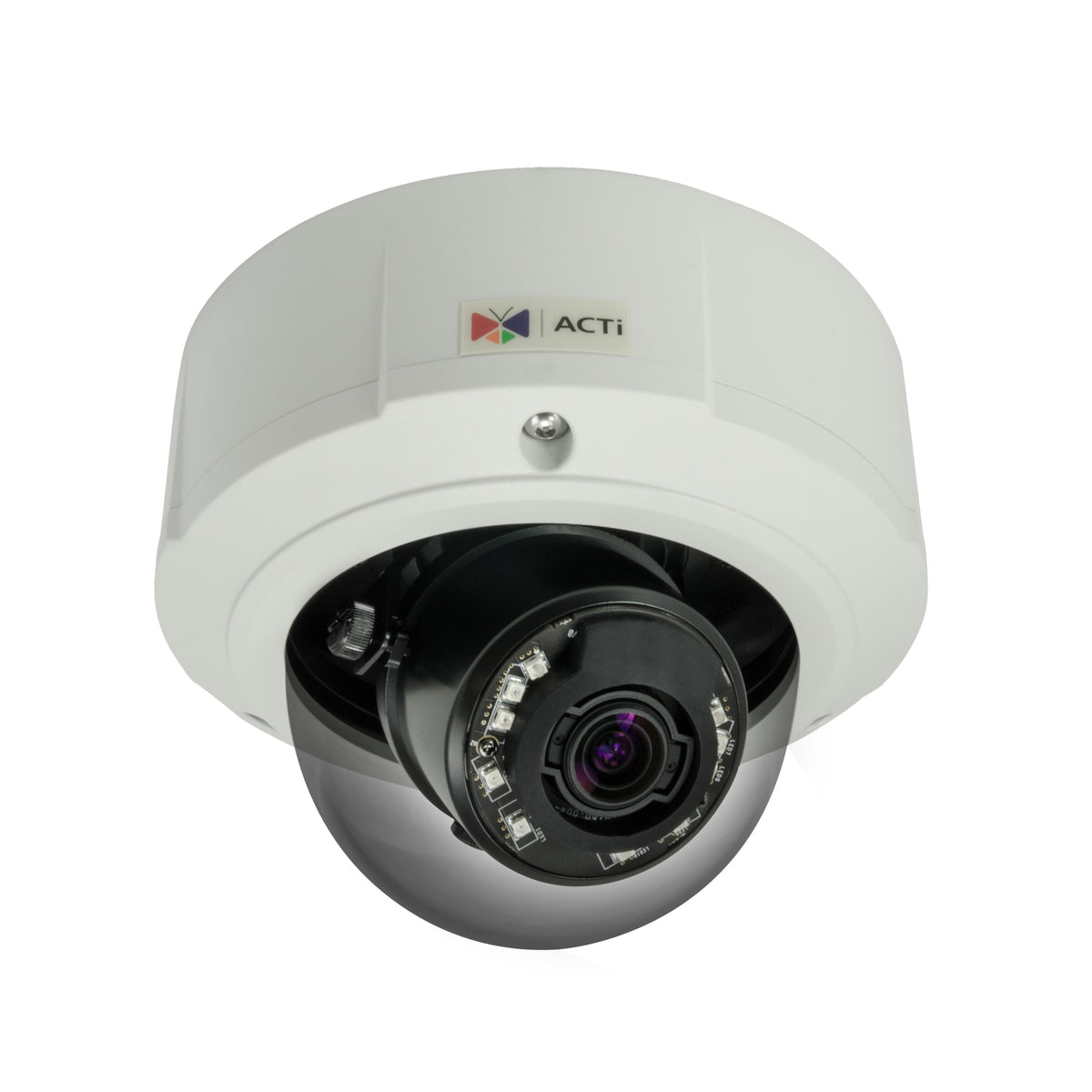

ACTi B83 | 2 Megapixel Outdoor Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 3x Zoom Lens
Regular price
$584.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
ACTi B83 | 2 Megapixel Outdoor Dome Camera with Day/Night, Adaptive...
Regular price
$584.87
Unit price
Brand: Acti Corp. Usa
|
SKU:
716272
Regular price
$584.87
Unit price
Shipping calculated at checkout.
Description
Description
ACTi B83 | 2 Megapixel Outdoor Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 3x Zoom Lens
2MP Video Analytics Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 3x Zoom lens, f3-9mm/F1.3-2.2 (HOV:102.1°-36°), DC iris, Auto Focus, H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO, Built-in Analytics
Acti - B83 - Features
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 3x Zoom Lens with f3.0-9.0mm/F1.3-F2.2, DC iris, Auto focus
- Extreme WDR
- Super wide angle
- Event trigger, response and notification
Specifications
Specifications
Acti - B83 - Specifications
| Product Type | Zoom Dome |
|---|---|
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1944(H) X 1224(V) (2.38 MP) |
| Effective Pixels | Yes |
| Day / Night | Superior |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.3; B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | 40m |
| IR Working Distance | 40m |
| Horizontal Resolution (TV Lines) | 1450 TVL |
| S/N Ratio | 75 dB |
| Focal Length | Zoom, f3.0-9.0mm |
| Aperture | F1.3-F2.2 |
| Zoom Ratio | 3x optical zoom |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | DC iris |
| Focus | 102.1° - 36° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 102.1° - 36° |
| Vertical Viewing Angle | 56.8° - 20.1° |
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P, ACTi URL command |
| Signal Process | Ip |
| UNSPSC Code | 46171610 |
