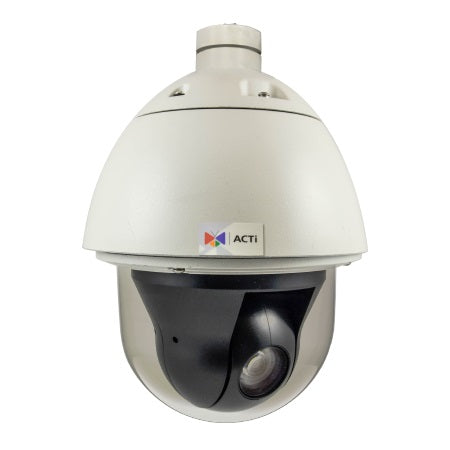

ACTi B943 | 3 Megapixel Outdoor Speed Dome Camera with Day/Night, Extreme WDR, SLLS, 36x Zoom Lens
Regular price
$2,994.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
ACTi B943 | 3 Megapixel Outdoor Speed Dome Camera with Day/Night, E...
Regular price
$2,994.83
Unit price
Brand: Acti Corp. Usa
|
SKU:
921463
Regular price
$2,994.83
Unit price
Shipping calculated at checkout.
Description
Description
ACTi B943 | 3 Megapixel Outdoor Speed Dome Camera with Day/Night, Extreme WDR, SLLS, 36x Zoom Lens
3MP Video Analytics Outdoor Speed Dome with D/N, Extreme WDR, SLLS, 36x Zoom lens, f4.6-165.6mm/F1.55-5.0 (HOV:57.6°-2.35°), DC iris, Auto Focus, H.265/H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, High PoE/AC24V, IP67, IK10, DI/DO, Built-in Analytics
Acti - B943 - Features
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity
- 36x Zoom Lens with f4.6-165.6mm/F1.55-F5.0, DC iris, Auto focus
- Extreme WDR
- Endless Pan & Tilt
- H.265 Compression
- Event trigger, response and notification
Specifications
Specifications
Acti - B943 - Specifications
| Product Type | Speed Dome |
|---|---|
| Maximum Resolution | 3MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2065(H) X 1553(V) (3.21 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F1.55 (30 IRE , 2400 K); B/W: 0.04 lux at F1.55 (30 IRE, 2400 K) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| S/N Ratio | 56 dB |
| Focal Length | Zoom, f4.6-165.6mm |
| Aperture | F1.55-F5.0 |
| Zoom Ratio | 36x optical zoom |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | DC iris |
| Focus | 57.6° - 2.35° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 57.6° - 2.35° |
| Vertical Viewing Angle | 44.9° - 1.78° |
| Scan Panning / Tilting Speed | 1.6° - 64°/second, 1.6° - 32°/second |
| Manual Panning / Tilting Speed | 0.16° - 54.4°/second, 0.16° - 27.2°/second |
| Form Factor | Dome |
| UNSPSC Code | 46171610 |
