ACTi E210 | 10 Megapixel Box Camera with Day/Night, Basic WDR, 4.3x...
Regular price
$702.26
Unit price
Brand: Acti Corp. Usa
|
SKU:
716291
Regular price
$702.26
Unit price
Description
Description

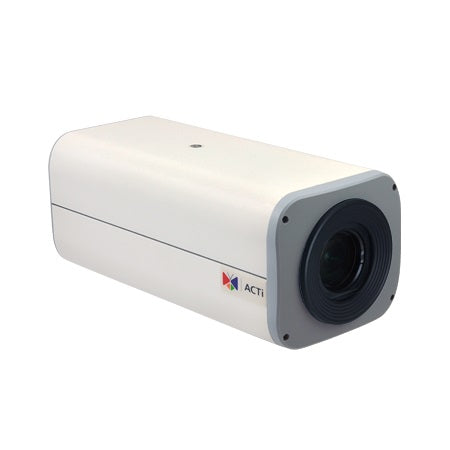

ACTi E210 | 10 Megapixel Box Camera with Day/Night, Basic WDR, 4.3x Zoom Lens
10MP Zoom Box with D/N, Basic WDR, 4.3x Zoom lens, f3.1-13.3mm/F1.4-4.0 (HOV:90.6°-34.3°), P-Iris, Auto Focus (for installation), H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, RS-422/RS-485
Acti - E210 - Features
- 10 Megapixel
- Day & Night
- 4.3x Zoom Lens with f3.1-13.3mm/F1.4-F4.0, P-Iris, Auto focus (for installation)
- Basic WDR
- Wide Angle
- Event trigger, response and notification
Specifications
Specifications
Acti - E210 - Specifications
| Product Type | Zoom Box |
|---|---|
| Maximum Resolution | 10MP |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.3 " |
| Effective Pixels | 3856(H) X 2764(V) (10.66 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE , 2400 K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Horizontal Resolution (TV Lines) | 1450 TVL |
| S/N Ratio | 52 dB |
| Focal Length | Zoom, f3.1-13.3mm |
| Aperture | F1.4-F4.0 |
| Zoom Ratio | 4.3x optical zoom |
| Zoom Application | Camera Installation |
| Iris | P-Iris |
| Focus | 90.6° - 34.3° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 90.6° - 34.3° |
| Vertical Viewing Angle | 68.7° - 26.4° |
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P, ACTi URL command |
| UNSPSC Code | 46171600 |
