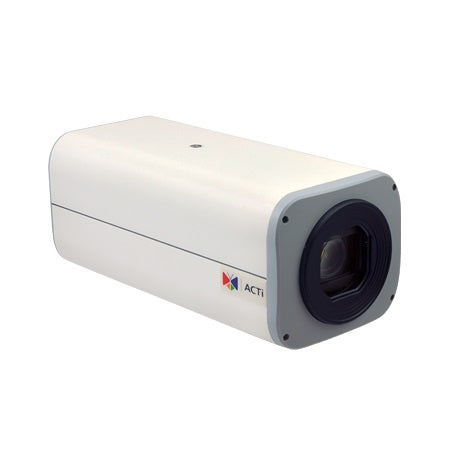

ACTi I28 | 2 Megapixel Video Analytics Box Camera with Day/Night, Extreme WDR, SLLS, 33x Zoom Lens
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
2MP Video Analytics Zoom Box with D/N, Extreme WDR, SLLS, 33x Zoom lens, f4.5-148.5mm/F1.6-5.0 (HOV:69.3°-3°), DC iris, Auto Focus, H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, RS-422/RS-485, Built-in Analytics
Acti - I28 - Features
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity
- 33x Zoom Lens with f4.5-148.5mm/F1.6-F5.0, DC iris, Auto focus
- Extreme WDR
- Event trigger, response and notification
Specifications
Specifications
Acti - I28 - Specifications
| Product Type | Zoom Box |
|---|---|
| Maximum Resolution | 2MP |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1944(H) X 1224(V) (2.38 MP) |
| Effective Pixels | Yes |
| Day / Night | Superior |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F1.6 (30 IRE , 2400 K); B/W: 0.05 lux at F1.6 (30 IRE, 2400 K) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Electronic Shutter | 1/5-1/32000 second (manual mode); 1/5-1/32000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1800 TVL |
| S/N Ratio | 56 dB |
| Focal Length | Zoom, f4.5-148.5mm |
| Aperture | F1.6-F5.0 |
| Zoom Ratio | 33x optical zoom |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | DC iris |
| Focus | 69.3° - 3° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 69.3° - 3° |
| Vertical Viewing Angle | 38° - 1.7° |
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P, ACTi URL command |
| UNSPSC Code | 46171600 |
