Brand: Acti Corp. Usa
|
SKU:
950040

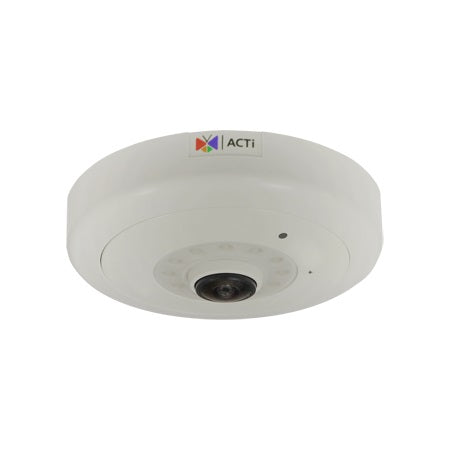

ACTi Q51 | 2 Megapixel Heat Map Indoor Hemispheric Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 1.3mm Lens
Regular price
$1,765.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
ACTi Q51 | 2 Megapixel Heat Map Indoor Hemispheric Dome Camera with...
Regular price
$1,765.03
Unit price
Brand: Acti Corp. Usa
|
SKU:
950040
Regular price
$1,765.03
Unit price
Shipping calculated at checkout.
Description
Description
ACTi Q51 | 2 Megapixel Heat Map Indoor Hemispheric Dome Camera with Day/Night, Adaptive IR, Extreme WDR, SLLS, 1.3mm Lens
2MP Heat Map Indoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f1.3mm/F2.6 (HOV:171°), H.264, Dewarping, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, Built-in Analytics
Acti - Q51 - Features
- Heat Map
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fisheye Lens with f1.3mm/F2.6
- Extreme WDR
- 360°/180° Panorama View with Dewarped Streaming
- Event trigger, response and notification
Specifications
Specifications
Acti - Q51 - Specifications
| Product Type | Hemispheric Dome |
|---|---|
| Maximum Resolution | 2MP |
| Product Application | Heat Map |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 3096(H) X 2080(V) (6.44 MP) |
| Effective Pixels | Yes |
| Day / Night | Superior |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F2.6 (30 IRE, 2400 K); B/W: 0 lux at F2.6 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED x 12 (850 nm) |
| IR Working Distance | 20m |
| Horizontal Resolution (TV Lines) | 1800 TVL |
| S/N Ratio | 56 dB |
| Focal Length | Fixed focal, f1.3mm |
| Aperture | F2.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 171° |
| Vertical Viewing Angle | 115.8° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Form Factor | Dome |
| UNSPSC Code | 46171610 |
