Adams Rite Manufacturing 1000-21-32-121 | Aluminum Door Lock Parts ...
Description
Description

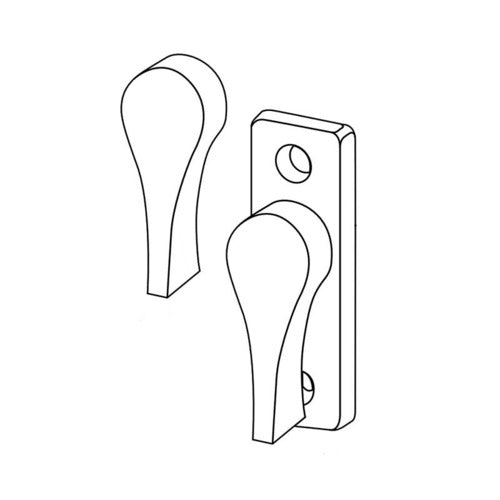

Turn Trim and Escutcheon, MS1847, Pendicular Drive, 1-55/64" Spindle, Dark Bronze
Designed to operate Adams Rite MS1847® Deadlocks and the 5017 Wood Door Deadlock.
Options: The availability of both perpendicular and parallel drives in these turns, coupled with the three hub drive positions of the MS1847 lock, provides several options. Choice of turn drive position relates directly to the particular lock hub drive position. Special care in specifying both the proper turn and lock in ordering is recommended. Chart in catalog shows turn positions relative to lock hub positions. Broken line indicates direction of travel (45°) to retract bolt (see chart on catalog page).
Adams Rite Manufacturing - 1000-21-32-121 - Features
- Materials: Turn Lever: Zinc alloy, trim finish 130; Escutcheon: Stainless steel, trim finish 130
- Spindles: Hardened steel, plated for corrosion resistance. First dash number in order guide indicates spindle parallel or perpendicular to turn level. Second dash number indicates spindle length "L". See dash table on catalog page
- 1004 Turn: 1004 Turn has a longer, more ergonomically-friendly turn lever
- 1015 Turn: Available with 1016 blank plate for doors from 5/8” to 2-1/4”thickness. Without blank plate turn available (for use with cylinder pull) on doors from 7/16” to 2” thickness. Standard finish 130, Satin Aluminum enamel. Turn 1015 for use with 5017 lock is designed for wood door applications
- Standard Package: Individually packaged. Dash-21 and Dash-11 assembled, with escutcheon. Dash-01 and -02, unassembled, include turn, spindle, washer and push nut for assembly on the door pull plate. Shipping weight: 1/16 lb
Specifications
Specifications
Adams Rite Manufacturing - 1000-21-32-121 - Specifications
| Finish | Dark Bronze (Paint) |
|---|---|
| Product Type | Parts Other Than For Mortise Or Cylindrical Locks |
| UNSPSC Code | 46171500 |
| Color | Dark Bronze Ritecoat Paint |
| Color Code | 121 |
| Package Qty | 1 |
