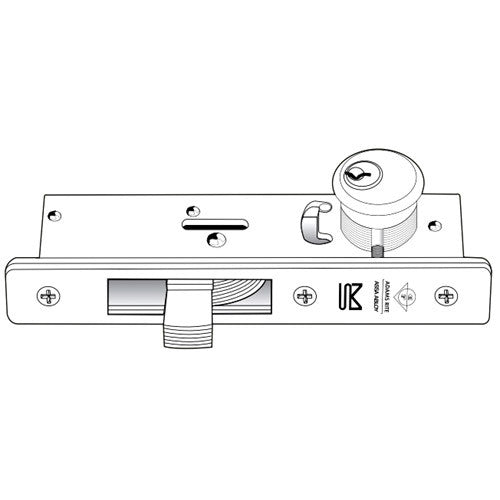

Adams Rite Manufacturing 1830-03-628 | Aluminum Door Deadlocks Satin Aluminum Clear Anodized

Adams Rite Manufacturing - 1830-03-628 - Features

• The 1830 Bottom Rail Deadlock Provides Bottom Rail Locking in Ultra Narrow Stile or Tempered Glass Doors
• Tamper Proof with an Armored Faceplate
• It Protects with a Minimum Threshold Strike Opening
• Cylinder Height (Backset): 31/32” and 1-1/8” only
• Case: Steel with corrosion-resistant plating. Measures 1” x 6” x depth (depth varies with cylinder height)
• Bolts: 15/32” x 5/8” x 2-1/8” with 5/8” throw. Six-ply laminated steel with eight plys within case. Center ply has Alumina-Ceramic core to deter hacksaw attack
• Strike: See back page for dimensions of strike slot which can be cut in metal thresholds. 4006 strike is available separately, with stainless steel trim plate and plastic box
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information
• Options: Specify either 31/32” or 1-1/8” cylinder height (see dash table on catalog page). 4006 strike and cylinder(s) available separately, if required
• Standard Package:
• Individually boxed with machine screws for mounting. Cylinders and/or thumbturns are available separately. Shipping weight: 1-1/2 lbs
