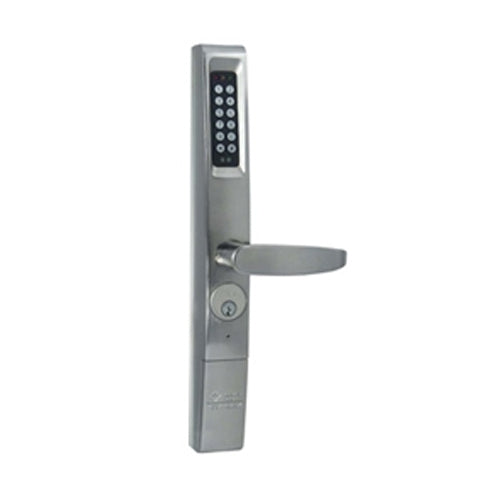

Adams Rite Manufacturing 3090-01-626 | Door Deadlatch Keyless Entry...
Description
Description
Compatible with Adams Rite latches or 8000 Series Exit Devices, Yale 7200 Series, Corbin Russwin ED4000 Series, 626 Satin Chrome, The eForce 3090 Keyless Entry is a battery-operated keyless entry control for Adams Rite deadlocks deadlatches and exit devices that is compatible with aluminum stile steel and wood door applications. The device can accommodate up to 150 users including master supervisor and emergency users plus two one-time codes. The eForce 3090 can operate in three modes Standard Passage and Lockout. All programming is accomplished via the keypad. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a piezo horn.
Adams Rite Manufacturing - 3090-01-626 - Features
- A Battery Operated Keyless Entry Control Device
- The eForce-150 3090 Keyless Entry Provides Access Control for Adams Rite Deadlocks, Deadlatches, and Exit Devices
- Surface Mounted with Concealed Fasteners
- Non-Handed with Clutched Lever Protection
- Key Orride Via Mortise Cylinder
- UV Stable Keypad Material
- Electrified Product
- Battery Operated Keyless Entry Control Device
- Housing: The sleek-looking 3090 eForce measures 1-3/4” wide x 15-3/8” high, with Satin Chrome (626) and Powdercoat Dark Bronze (121) finishes
- Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing
- Compatible Locking Devices: The 3090 eForce retrofits to Adams Rite MS® Deadlocks, 4500 and 4900 Deadlatches and 8000 Series Exit Devices in 31/32” backsets and greater. Additionally, the 3090 eForce-150 is compatible with Yale 7200 Series and Corbin Russwin ED4000 Series exit devices (check model number for availability)
- Options: RSK-3090, Remote activation input cable
- Standard Package: Individually boxed with installation instructions, manual, and mounting hardware for metal door applications from 1-3/4” to 2-1/4” thick. Shipping weight approximately 5.5 lbs
- Provides Access Control for Adams Rite Deadlocks, Ceadlatches, and Exit Devices
- Can Operated in Three Modes
- All Programming Accomplished Through Keypad
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Specifications
Specifications
Adams Rite Manufacturing - 3090-01-626 - Specifications
| Cylinder Type | Prepared For Mortise Cylinder |
|---|---|
| Design | Curved-In Lever |
| Finish | Us26D Satin Chrome |
| Function | Narrow Stile Mortise Latch |
| Keyway | Less Cylinder |
| Locking State | Fail-Secure (Power To Unlock) |
| Product Type | Electrified Trim |
| Sales Category | Electric Narrow Stile Trim |
| Solenoid Duty | Continuous Duty |
| Voltage | Battery |
| UNSPSC Code | 46171500 |
| Finish | Satin Chrome |
| Function | Entry |
| Color Code | 626/US26D |
