Brand: Adams Rite Manufacturing
|
SKU:
CS183918

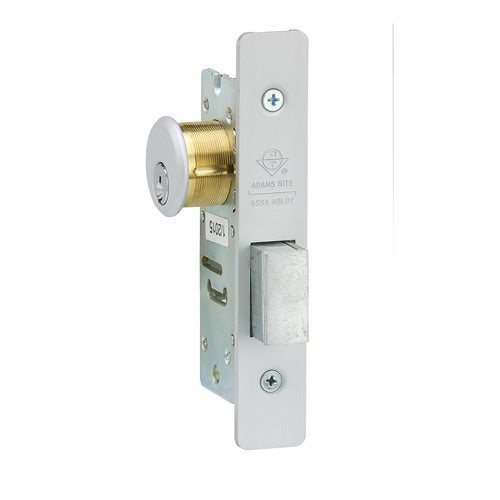

Adams Rite Manufacturing 4070-20-628 | Aluminum Door Deadlocks Satin Aluminum Clear Anodized
Regular price
$140.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Adams Rite Manufacturing 4070-20-628 | Aluminum Door Deadlocks Sati...
Regular price
$140.07
Unit price
Brand: Adams Rite Manufacturing
|
SKU:
CS183918
Regular price
$140.07
Unit price
Shipping calculated at checkout.
Description
Description
Adams Rite Manufacturing 4070-20-628 | Aluminum Door Deadlocks Satin Aluminum Clear Anodized
Cylinder Backset: 1-3/4" only Case: Zinc alloy, measures 7/8" x 3-5/8" x 2-5/8" deep. Bolt: Brass with stainless steel dogs, 1/2" x 1-1/2" with 3/4" horizontal throw and 11/32" expansion above and below main bolt. Armored Faceplate: Flat faceplate of brass, 1' x 5-3/4". Available in a variety of finishes. Strike: 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening. Brass, with four-screw mounting. Trim finish same as faceplate. Special Cylinder Cam: Operable by any standard mortise cylinder with special cam dimensions, as shown. Cylinders with such cams can be readily obtained from most cylinder manufacturers. Options: Specify trim finish: US3 Polished Brass (605), US26 Bright Chrome (625), or US26D Satin Chrome (626). Standard Package: Individually boxed with strike and wood screws for mounting lock and strike. Shipping weight: 2 lbs.
4070:
Cylinder Backset: 7/8", 31/32", or 1-1/8" only Case: Steel with corrosion-resistant plating. 1" x 6" x depth. Depth varies by backset. Bolt: 5/8" x 1-1/4" x 5/8" throw. Cylinder Cam: Operable by any standard mortise cylinder with special cam, dimensioned as shown. See CYLINDERS section for cylinder make, thumbturn and trim ring information. Strike: In metal installations, a slot in door jamb serves as strike. Deluxe trim strike 4170 is also available separately for wood installations. Standard Package: Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately. Shipping weight: 1/2 lb.
Deadbolt, Short Throw Projection Style, Flat Faceplate, 31/32" Backset, Aluminum
Provides a heavy duty deadbolt lock that expands into the strike for heavy duty wood or hollow metal applications.
2331:
4070:
Adams Rite Manufacturing - 4070-20-628 - Features
- The 4070 Short Throw Deadbolt Provides Security for a Conventionally Projected Bolt in Installations Where the Long Throw MS Deadlock Cannot be Used
- The Smaller 4070 Offers the Longest Practical Throw from a Narrow Stile
Specifications
Specifications
Adams Rite Manufacturing - 4070-20-628 - Specifications
| ANDI Grade | Grade 2 |
|---|---|
| Finish | US28 Satin Anodized Aluminum |
| UL | No |
| Backset - Inches | 31/32 |
| Product Type | Deadlock |
| Sales Category | Mortise Deadlock |
| Function | Deadbolt Single Cylinder |
| Number of Cylinders | No Cylinder |
| Packaging | Boxed |
| UNSPSC Code | 46171500 |
| Color | Satin Aluminum Clear Anodized |
| Color Code | 628/US28 |
| Package Qty | 1 |
| Finish | Satin Aluminum Clear |
