Adams Rite Manufacturing 4590-01-00-313 | 4590 Deadlatch Paddle for 4300, 4500, 4900, Dark Bronze Anodized
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Pull to Left, 1-3/4" Door Thickness, 313 Dark Bronze Anodized

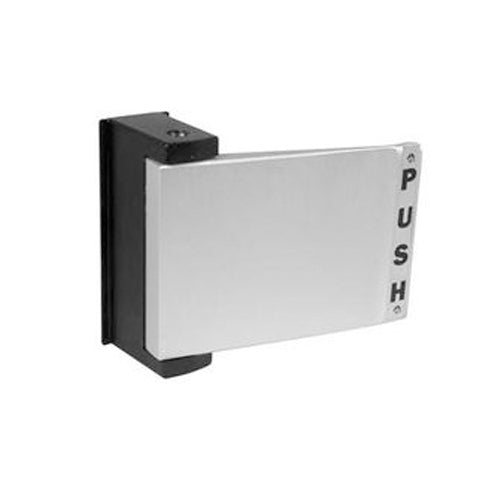

4590 SeriesDeadlatch Paddle
The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
Function
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.
Operation:
- Available in four configurations:
- push left, push right, pull left, and pull right.
- Extruded aluminum.
- Zinc alloy with black finish.
- Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
- Furnished for use with 4300, 4500 and 4900 Series Deadlatches.
- Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch.
- Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.
- Individually boxed with mounting hardware.
- Units for 4300, 4500 or 4900 Series Deadlatches include cam plug.
- 1-1/2 lb
- [0.68 kg]
- First dash number specifies operation, handing and compatible latch.
- If required, use second dash number to specify nonstandard units for doors thicker than 1-3/4" [44.5 mm].
- Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.
Adams Rite Manufacturing - 4590-01-00-313 - Features
- Deadlatch Paddle
- Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch
- Operation: Available in four modes: push to left, push to right, pull to left, and pull to right
- Specifications:
- Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available
- Operates with a Simple Push or Pull
- Ergonimcally-Friendly Alternative to a Knob or Lever
- Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction
- Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins
- Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page
- Available In Four Modes: Push To Left, Push To Right, Pull To Left, And Pull To Right
- Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Specifications
Specifications
Adams Rite Manufacturing - 4590-01-00-313 - Specifications
| Sales Category | Electric Strike Part |
|---|---|
| UNSPSC Code | 31162407 |
| Finish | Dark Bronze Anodized |
| Handing | Left Hand |
| Base Material | Aluminum |
| Screws | Machine |
| Product Width | 2.31" |
| Product Length | 5.43" |
| Product Height | 4" |
| Package Qty | 1 |
| Lever/Knob Design | Flat Paddle |
| Package Width | 4.5" |
| Package Volume | 57.375 |
| Package Length | 6.375" |
