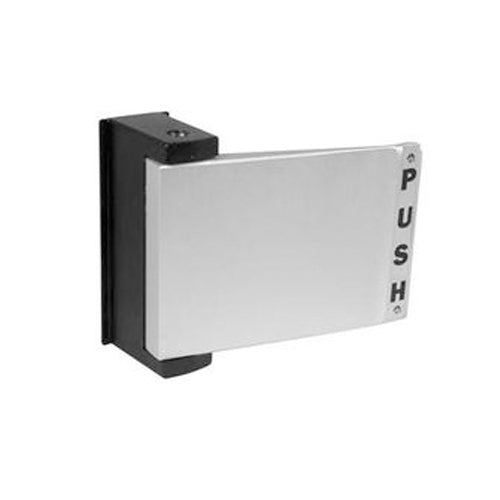

Adams Rite Manufacturing 4590-01-00-628 | 4590 Deadlatch Paddle for 4300, 4500, 4900, Satin Aluminum Clear

Adams Rite Manufacturing - 4590-01-00-628 - Features

• The 4590 Deadlatch Paddle is an Ergonomically-Friendly
• An Alternative to Knob or Lever Handles Makes Opening a Latched Door as Natural as Opening an Unlatched One Just Push or Pull in the Direction the Door Swings
• Deadlatch Paddle
• Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch
• Operation: Available in four modes: push to left, push to right, pull to left, and pull to right
• Specifications:
• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available
• Operates with a Simple Push or Pull
• Ergonimcally-Friendly Alternative to a Knob or Lever
• Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins
• Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page
• Available In Four Modes: Push To Left, Push To Right, Pull To Left, And Pull To Right
• Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb
• Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
