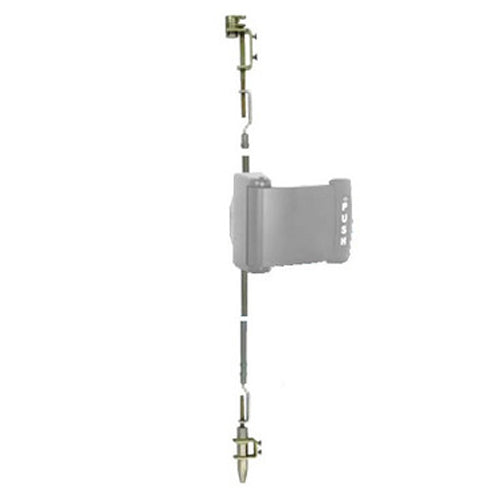

Adams Rite Manufacturing 4781-041-628 | Aluminum Door Deadlatches Satin Aluminum Clear Anodized

Adams Rite Manufacturing - 4781-041-628 - Features

• The 4781 Two Point Deadlatch Latches to Header and Threshold Allowing Both Door Leaves to Remain Active
• It is Designed for Paired Outswinging Narrow Stile Doors, but is also Suitable for Single Doors
• Paddle Dogging: Turning hex screw in paddle escutcheon holds paddle down, leaving door free-swinging
• Top Bolt: Similar to door latches on some automobiles and aircraft, the U-shaped bolt wraps around the strike post to deadlock position, which also deadlocks the bottom bolt through a gear train at the center of the rod assembly
• Header Strike: A flanged post installed on the header has generous location adjustment to allow for door misalignment, sag, bumpers, etc. Designed to prevent forced entry by bowing the door
• Bottom Bolt: Stainless hexagonal steel bolt requires only a 1/2" diameter hole in threshold for a strike
• Door Size: Standard unit will fit doors up to 66” above the paddle height (110” door if paddle is at max 44” height). For taller doors, order 8655 Tall Door Kit, which allows up to 97” above paddle
• Options: Can be exit only or allow key access from outside with use of 8650 Cylinder Escutcheon. Entry trim available with Adams Rite exit devices can also be specified, in the version used for CVR devices
• Standard Package: Individually boxed with mounting screws and installation instructions. Shipping weight: 3 lbs
