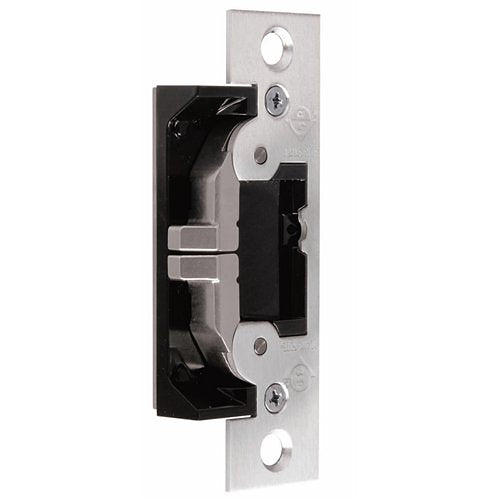

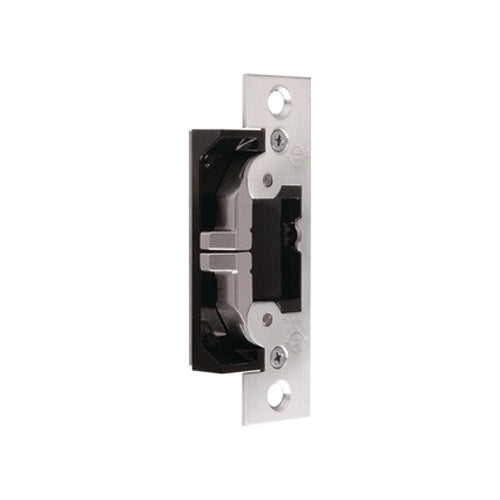

Adams Rite Manufacturing 7400-628 | 7400 Ultra line Electric Strike for Radius Jambs, Satin Aluminium Clear

Adams Rite Manufacturing 7400-628 | 7400 Ultra line Electric Strike for Radius Jambs, Satin Aluminium Clear

The ULTRALINE premium electric strike range has features that are unmatched in the industry. The innovative and compact robust stainless steel split-jaw design maintains the high level of security expected from Adams Rite while enabling release electrically with over 13kg of sideload pressure. Single solenoid operates at 12/24V AC/DC. Field selectable fail safe or fail secure on strike body. ANSI/BHMA 156.5 Grade 1 UL listed for burglary resistance. Adjustable jaw.

Flat Faceplate, 628 Clear Anodized
UltraLine® 7400 SeriesElectric Strikes for Adams Rite Deadlatches, Cylindrical Locks

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

Function
This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power.

Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications:

• ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features: Case:

• 1-13/32" x 3-3/8" x 1-1/16" deep
• [35.7 mm x 85.7 mm x 27 mm deep]

Strike Lip:

• Basic 7400 strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.
• Lip extension kits not available on 7401, 743

Strike Opening:

• 5/8" adjustable x 1-7/16" x 1/2" deep [15.9 mm adjustable x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical locksets.

Latchbolt Projection:

• 1/2" to 5/8"
• [12.7 mm to 15.9 mm]

Preload:

• 7400 Series Electric Strikes open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
• Using jaw inserts of various sizes, the Ultraline 7400 Series electric strikes are adjustable to compensate for door and frame related preload and security problems.

Faceplate:

• Available in a variety of architectural finishes.

Standard Package:

• Individually boxed with mounting screws, mounting tabs, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm], an adjustable keeper shim pack and two plug-in voltage adapters for 12/24 VDC.

Shipping Weight:

• 2 lbs [0.91 kg].

Electrical: Voltage:

• Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw:

• .44A at 12 VDC
• .46A at 16 VDC*
• .23A at 24 VDC
• *Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure:

• Field selectable fail safe/fail secure
