Brand: Adams Rite Manufacturing | SKU: 970255

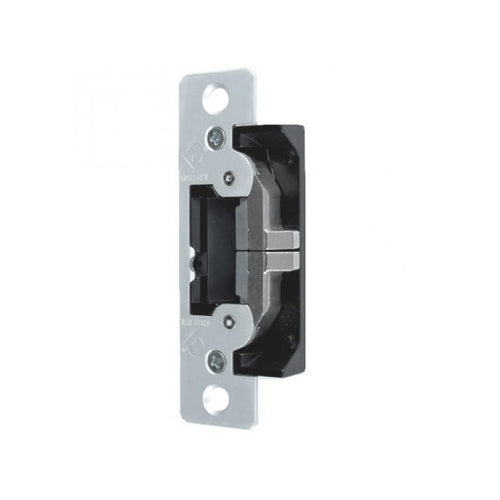

Adams Rite Manufacturing 7401-119 | Electric Strike Satin Black Rite Coat Paint

$199.13

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Adams Rite Manufacturing 7401-119 | Electric Strike Satin Black Rite Coat Paint

Electric Strike, Aluminum Stiles, Radius Face, 12, 16, 24 VAC/DC, (VA7400-16VDC required for 16VDC Operation) Fail Safe/Fail Secure, Black

For use in aluminum jambs and stiles. Opens electrically under 35 lbs. of preload.

7400, 7401 Electric Strikes with 4-7/8" faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.

Adams Rite Manufacturing - 7401-119 - Features

Fail-Safe/Fail-Secure: Field selectable at time of installation
Case: Approximately 1” x 3-3/8” x 1-1/16” deep
Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401
Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches
Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes
Voltage:
Field selectable to match power source of 12, 16, or 24 VDC
16 DC requires adapter (P/N VA 7400-16VDC)
4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode

Specifications

Adams Rite Manufacturing - 7401-119 - Specifications

ANSI Grade	Grade 1
Locking State	Selectable Fs Or Fse
Frame Material	Aluminum
Product Type	Cylindrical Or Narrow Stile Mortise Latch
Sales Category	Electric Strike
Max Latch Length - Inch	Maximum 5/8 Inch Throw
Voltage and Duty INT	12 Or 24V Dc
Mounting	For Surface Mt Installations
Pull Strength - Lbs	1501 - 2000 Lbs.
Warranty	5 Year Limited
Voltage and Duty CONT	Selectable 12/24V Dc
UNSPSC Code	31162407
Switch Type	None
Package Qty	1
