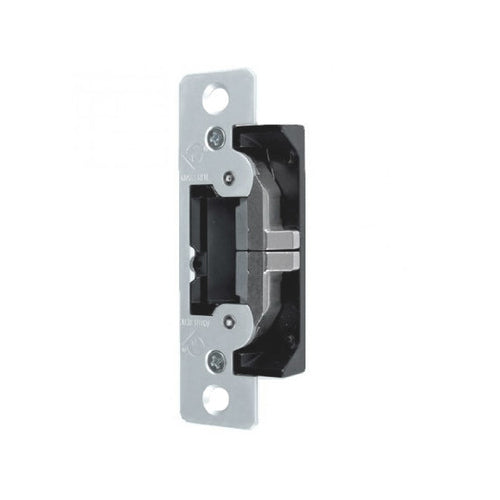

Adams Rite Manufacturing 7401-130 | Door Electric Strike, Fail Safe/Fail Secure, 12/24 Volt Ac/Dc, Clear Anodized, With 4-7/8" Radius Faceplate

Adams Rite Manufacturing 7401-130 | Door Electric Strike, Fail Safe/Fail Secure, 12/24 Volt Ac/Dc, Clear Anodized, With 4-7/8" Radius Faceplate

Radius Faceplate, 130 To Match 628 Clear Anodized
UltraLine® 7400 SeriesElectric Strikes for Adams Rite Deadlatches, Cylindrical Locks

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

Function
This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power.

Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications:

• ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features: Case:

• 1-13/32" x 3-3/8" x 1-1/16" deep
• [35.7 mm x 85.7 mm x 27 mm deep]

Strike Lip:

• Basic 7400 strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.
• Lip extension kits not available on 7401, 743

Strike Opening:

• 5/8" adjustable x 1-7/16" x 1/2" deep [15.9 mm adjustable x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical locksets.

Latchbolt Projection:

• 1/2" to 5/8"
• [12.7 mm to 15.9 mm]

Preload:

• 7400 Series Electric Strikes open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
• Using jaw inserts of various sizes, the Ultraline 7400 Series electric strikes are adjustable to compensate for door and frame related preload and security problems.

Faceplate:

• Available in a variety of architectural finishes.

Standard Package:

• Individually boxed with mounting screws, mounting tabs, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm], an adjustable keeper shim pack and two plug-in voltage adapters for 12/24 VDC.

Shipping Weight:

• 2 lbs [0.91 kg].

Electrical: Voltage:

• Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw:

• .44A at 12 VDC
• .46A at 16 VDC*
• .23A at 24 VDC
• *Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure:

• Field selectable fail safe/fail secure
