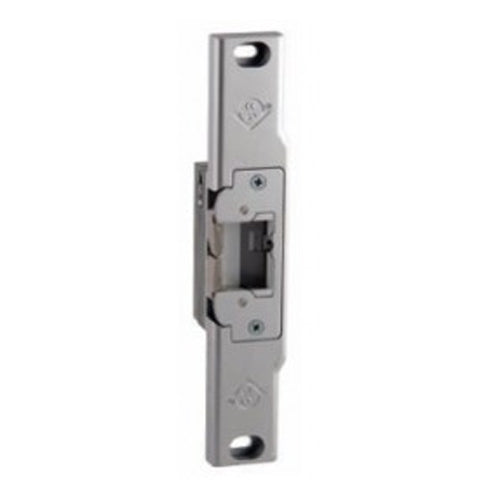

Adams Rite Manufacturing 74R2-121 | Door Electric Strike, Fail Safe/Fail Secure, 12/24 Volt Ac/Dc, Dark Bronze Anodized, With 1/2" Pullman Latch Bolt

Adams Rite Manufacturing 74R2-121 | Door Electric Strike, Fail Safe/Fail Secure, 12/24 Volt Ac/Dc, Dark Bronze Anodized, With 1/2" Pullman Latch Bolt

The 74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" Pullman type latchbolt. For use in aluminum door jambs. Opens electrically under 35lbs. of preload. Function A semi-mortised strike for rim exit devices having 1/2" Pullman type bolts. Provides electrical remote control, allowing door to open without actuation of the exit device. This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door "preload" (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

For use with 1/2" latchbolt, 121 To Match 313 Dark Bronze Anodized

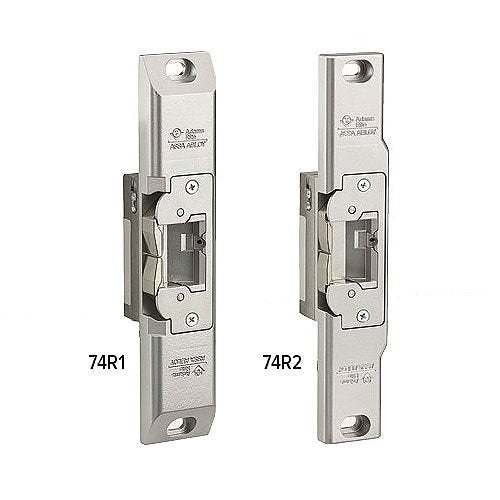

UltraLine® 74R2Electric Strikes for Rim Exit Devices

74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" (12.7 mm) Pullman latchbolts. Designed for use in aluminum applications. Open electrically under 25 lbs (11.3 kg) of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

Function
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs (680.4 kg) of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

Certifications:

• UL 1034

• UL 294

• ULC-S319

• ANSI/BHMA A156.18

• ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features: Case:

• 1-13/32" x 3-3/8" x 1-1/8" deep
• (35.7 mm x 85.7 mm x 28.6 mm deep)

Strike Opening:

• Bolt retaining keeper is stainless steel.
• 5/8" x 1-7/16" x 1/2" deep
• (15.9 mm x 36.5 mm x 12.7 mm deep)

Faceplate:

• Not separate
• 1-5/8" x 9 x 1/2"
• (41.3 mm x 228.6 mm x 12.7 mm)

Latchbolt Projection:

• 1/2" (12.7 mm)

Standard Package:

• Individually boxed with mounting plate shims, mounting screws, and installation instructions.

Shipping Weigh:

• 2 lbs (0.91 kg)

Electrical: Voltage:

• Field selectable to match power source of 12/24 VDC. VA7400-16 VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw:

• .44A at 12 VDC
• .46A at 16 VDC*
• .23A at 24 VDC
• *Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure:

• Field selectable fail safe/fail secure

Options:

• Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.

• ELX-ElectroLynx® Adapter: Connects Adams Rite electrified products to ElectroLynx system

• 16 VDC Adapter: VA7400-16VDC required when using 16 VDC power
