Brand: Adams Rite Manufacturing | SKU: CS402057

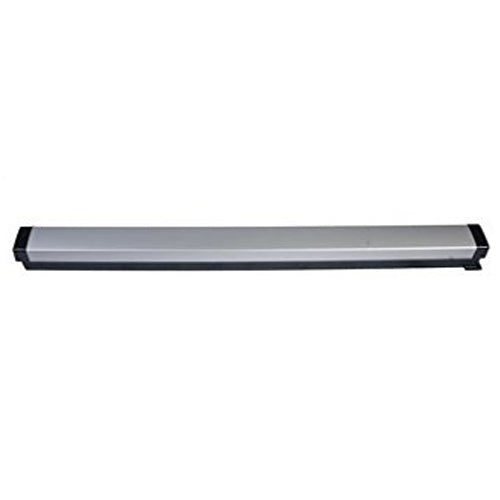

Adams Rite Manufacturing 8099-M1-3236 | Active Dummy Bar with Monitoring Switch, Dark Bronze Anodized

$291.53

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Adams Rite Manufacturing 8099-M1-3236 | Active Dummy Bar with Monitoring Switch, Dark Bronze Anodized

Aluminum Door, 313 Dark Bronze Anodized, 36" Width
8099 SeriesDummy Push Bar

The 8099 Dummy Push Bar is designed for narrow stile aluminum, hollow metal, and wood applications that do not require a latching/locking life-safety exit device.

Function
Dummy Push Bar with no latch mechanism but with either single or dual monitor/signal switches. May be used in conjunction with a maglock, where the push bar turns off the magnet and allows exit from the building. Dual switch version allows redundancy where required by code or the operation of a signal device. Designed for applications with single or pairs of doors.

Features: Materials:

Push bar made of extruded aluminum,
available variety of architectural finishes.

Stile Width:

For hollow metal and wood applications:
minimum 3-3/4" [95.3 mm]
For aluminum applications:
minimum 2" [50.8 mm] stile.

Fasteners:

For hollow metal and wood applications:
standard self-tapping screws and machine screws.
For aluminum applications:
standard machine screws.

Push Bar Length:

Standard sizes:
dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.

Standard Package:

Individually boxed.

Shipping Weight:

6 lbs
[2.72 kg]

Options:

Active dummy push bar, single monitoring switch

Available for aluminum, hollow metal and wood applications. Specify door type and width when ordering.

Optional Sex Bolt Kits 26-0584 (two required per device) available separately.

Adams Rite Manufacturing - 8099-M1-3236 - Features

Dummy Pushbar with no Latch Mechanism but with Either a Single or Dual Monitor/Signal Switch
May be Used with a Maglock, Where Bar Turns Off Magnet and Allows Exit from Building
Dual Switch Version Allows Redundancy Where Required by Code or the Operation of a Signal Device
Active Dummy Push Bar
Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes
No Latching Mechanism
Handing: Device is non-handed. Lever Entry Trim is field reversible
Monitoring / Signal Switch
Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width
May Be Used With A Maglock
Bar Height: Standard model adjusts from 30” to 44”
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100
Door Thickness: Suits 1-3/4” standard, up to 2-1/4”
Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”
Projection: 2-15/16” when fully projected, 1-15/16”when dogged
Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series
Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish
Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information
Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder
3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
Warranty: Five year limited

Specifications

Adams Rite Manufacturing - 8099-M1-3236 - Specifications

Finish	US28 Satin Anodized Aluminum
Function	Switch Only
Input Voltage	Any Low Dc Voltage
Product Type	Switched Pushbar
Sales Category	Electric Exit Bar
Rail Length - Inches	36 Inches
Switches	Single Switch
UL Listing Type	Panic Hardware
Stile Type	Narrow Stile Application
UNSPSC Code	46171500
Finish	Dark Bronze Anodized
Function	Exit Only
Hand	Non-Handed
Color	Dark Bronze Anodized Aluminum
