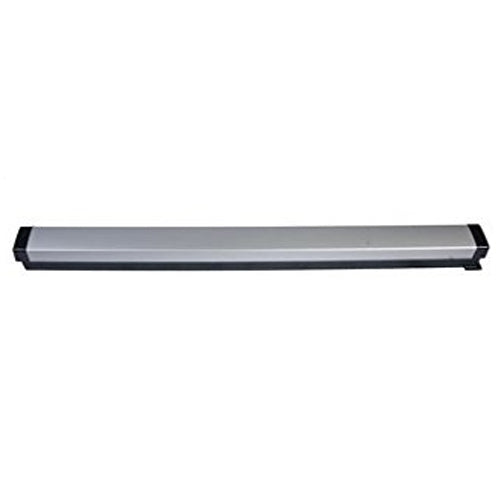

Adams Rite Manufacturing 8099-M1-3242 | Active Dummy Pushbar with Monitor Switch, Aluminum Doors, 42 Inch, Dark Bronze Anodized Aluminum

Adams Rite Manufacturing - 8099-M1-3242 - Features

• Dummy Pushbar with no Latch Mechanism but with Either a Single or Dual Monitor/Signal Switch
• May be Used with a Maglock, Where Bar Turns Off Magnet and Allows Exit from Building
• Dual Switch Version Allows Redundancy Where Required by Code or the Operation of a Signal Device
• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes
• Handing: Device is non-handed. Lever Entry Trim is field reversible
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width
• Bar Height: Standard model adjusts from 30” to 44”
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited
