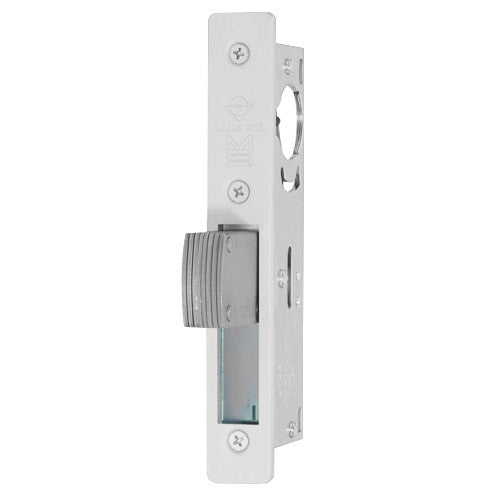

Adams Rite Manufacturing MS1850S-210-628 | Door Deadlock, Flat Faceplate, Straight Bolt, Non-Handed, 31/32" Backset, Clear Anodized
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Flat Faceplate, 31/32 Backset, Non-Handed, 628 Clear Anodized Finish, Any flat or radius faceplate except Schoolhouse., The MS1850S Deadlock utilizes a laminated stainless steel bolt activated by a pivot mechanism to provide maximum security for a single leaf narrow stile door. A huge bolt of laminated stainless steel nearly three inches long activated by an uncomplicated pivot mechanism has made this basic MS® Deadlock the standard of the narrow stile door industry. The length of this bolt provides maximum security for a single leaf door even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. Operation - 360° turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32 diameter mortise cylinder or thumbturn from either or both sides. Cylinder must have MS® dimensioned cam.
Adams Rite Manufacturing - MS1850S-210-628 - Features
- The MS1850S Deadlock Utilizes a Laminated Stainless Steel Bolt, Activated by a Pivot Mechanism to Provide Maximum Security for a Single Leaf Narrow Stile Door
- Straight Bolt Deadlock
- For Use in Single Leaf Narrow Stile Doors
- Laminated Steel Bolt
- 6-7/8" Faceplate
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Specifications
Specifications
Adams Rite Manufacturing - MS1850S-210-628 - Specifications
| ANDI Grade | Grade 1 |
|---|---|
| Finish | US28 Satin Anodized Aluminum |
| UL | No |
| Backset - Inches | 31/32 |
| Product Type | Mortise Lock |
| Sales Category | Ms Lock |
| Function | Deadbolt Double Cylinder |
| Latch Face | Faceplate Flat |
| Packaging | Boxed |
| Strike Type | Less Strike |
| UNSPSC Code | 46171500 |
| Finish | Aluminium |
| Function | Deadlock |
| Backset | 31/32" |
