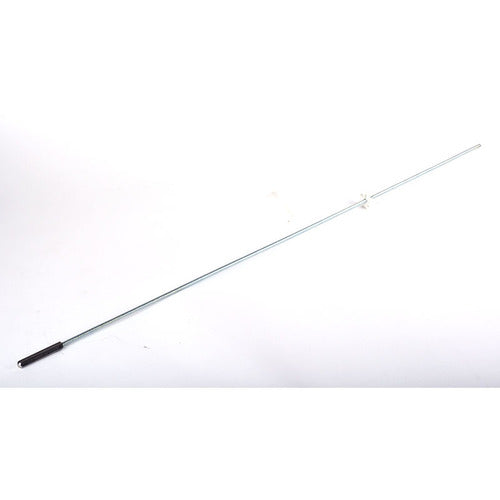

Adams Rite Manufacturing TDK-1880 | Flush bolt Tall Door Kit, for 84 To 120 Inch Door

Adams Rite Manufacturing - TDK-1880 - Features

• Cylinder Backset: 31/32” or 1-1/8” only
• Cylinder Height: Standard length (cylinder center to retracted bolt tip) is 12” with ± 1-1/4” adjustment. Other lengths available by special order
• Case: Measures 1” x 6” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating
• Bolt: Hexagonal 3/8” flat to flat, with 11/16” throw. Made of stainless steel
• Strike: 1/2” diameter hole in metal threshold or header is suitable. For wood thresholds, 4005 strike is available separately
• Faceplate: Measures 1" x 6-7/8"
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information
• Standard Package: Basic lock mechanism boxed with actuator arm attached, rod/bolt assembly unattached. Stainless steel bolt guide, mounting screws, and installation instructions included. Cylinders available separately. Shipping weight: 1-1/4 lbs
