Advantech IMC-318I-US | IE-PowerTray/18-AC, 18-Slot AC Powered Chas...
Description
Description
Media conversion is the most cost-effective solution for extending the productive life of legacy wiring plants and equipment while allowing implementation of new technologies. Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc-Gigabit a nd Giga-MiniMc are one of the industry’s smallest media converters with both data connections on the same side of the unit. An optional fiber SFP port gives network operators the flexibility to upgrade network equipment to different fiber interfaces. Designed and manufactured in the USA, the MiniMc Series extends 10 and 100 Mbps twisted pair network segments up to 80 km over fiber.
Advantech - IMC-318I-US - Features
- Both a media and data rate converter, the MiniMc features 10/100 Auto Negotiation on the copper port while the fiber port operates at 100 Mbps full duplex. MiniMc 10/100 switching fiber converters are ideal for all premises, FTTD, LAN-to-LAN or LAN-to-MAN fiber networking applications.
- 10/100 Mbps switching MiniMc connects 10 or 100 Mbps copper to 100 Mbps fiber (fixed or SFP version)
- 6-year comprehensive warranty on converter and power adapter
- User-friendly 10/100 Mbps Auto Negotiation technology on MiniMcs
- AutoCross feature for twisted pair connection on all converters
- MiniMcs include country-specific, high-reliability AC power adapters and can also be powered with an optional USB-power cable
- Available with multimode fiber or single-mode fiber, single-strand fiber, CWDM fiber and SFP connectors
- Compact, metal enclosures with external AC power adapters

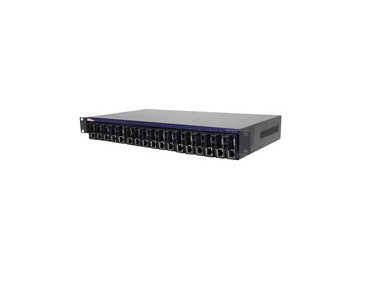

- IE-PowerTray/18-AC chassis supports up to 18 modules in the 1.5U high, rack-mountable enclosure
- Features internal AC power
- Supports an extended operating temperature range
- Modular design, hot-swappable
- 18-slot chassis
Specifications
Specifications
Advantech - IMC-318I-US - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Advantech - IMC-318I-US - Specifications
| Brand Name | Advantech |
|---|---|
| Manufacturer Part Number | IMC-318I-US |
| Type | Media Converter |
| UNSPSC Code | 43201553 |
| Number of Slot | 18 |
| Dimensions (W x H x D) | 5.8 x 43.10 x 23.5 cm (2.30 x 16.97 x 9.25 in.) |
| Weight | 4.5 kg (10.0 lbs) |
| Operating Temperature | -25 ~ 70°C (-13 ~ 158°F) |
| Storage Temperature | -25 ~ 70°C (-13 ~ 158°F) |
| Operating Humidity | 5~95% (non-condensing) |
| Safety | UL/cUL |
| EMC | CE, FCC Class A, CSA |
