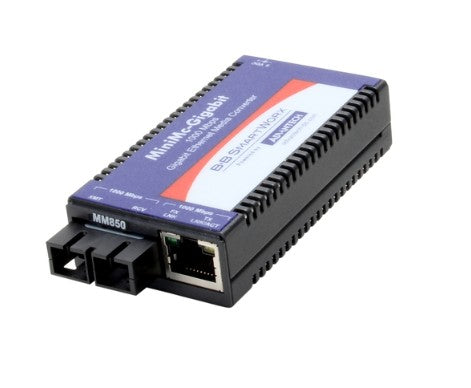

Advantech IMC-371-MM-PS | MiniMc-Gigabit, TX/SX-MM850-SC (Includes AC Power Adapter)
Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc-Gigabit is the industry’s smallest gigabit media converter with both data connections on the same side of the unit, and at a fraction of the cost of other alternatives. Plug-and-play operation with a variety of model types and powering options make the MiniMc-Gigabit easy and convenient to use.
Advantech - IMC-371-MM-PS - Features
- Media conversion is the most cost-effective solution for extending the productive life of legacy wiring plants and equipment while allowing implementation of new technologies. Media conversion’s greatest benefits are flexibility and cost savings.
- One 1000Base-SX or 1000Base-LX fiber Port
- One 1000Base-T twisted pair port
- AutoCross automatic selection between crossover or straight-through connection
- Status LEDs
- 18 connections in the 1.5U high IE-PowerTray/18 Chassis
- Metal enclosure with compact size
- Provides status LED
- Supports multiple power options: AC or DC adapter and dual USB cable
- Centralized powered IMC-318I chassis
Specifications
Specifications
Advantech - IMC-371-MM-PS - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Advantech - IMC-371-MM-PS - Specifications
| Brand Name | Advantech |
|---|---|
| Manufacturer Part Number | IMC-371-MM-PS |
| Type | Media Converter |
| UNSPSC Code | 43201553 |
| Fiber Port Number | 1 |
| RJ-45 Port Number | 1 |
| Fiber Transmission Speed | 10/100/1000 Mbps |
| Fiber Port Optical Mode | Multi-Mode |
| Fiber Transmission Wavelength | 850 nm |
| Fiber Transmission Distance | 550 m |
| Fiber Port Connector Type | SC Type |
| Dimensions (W x H x D) | 2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.) |
| Weight | 0.3 kg (0.7lb) |
| Power Input (AC) | 100 ~ 240 VAC |
| Operating Temperature | -25 ~ 70°C (-13 ~ 158°F) |
| Storage Temperature | -25 ~ 70°C (-13 ~ 158°F) |
| Operating Humidity | 5~95% (non-condensing) |
| Safety | UL/cUL |
| EMC | CE, FCC Class A, CSA |
