Advantech IMC-711I-AC-PS | IE-MediaChassis/1 (1-Slot, Includes AC P...
Regular price
$213.10
Unit price
Brand: Advantech
|
SKU:
523541
Regular price
$213.10
Unit price
Description
Description

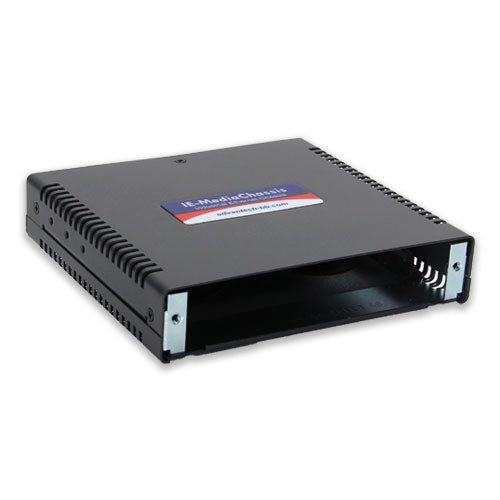

Advantech IMC-711I-AC-PS | IE-MediaChassis/1 (1-Slot, Includes AC Power Adapter)
The MediaChassis series of compact, flexible, table-top chassis support a variety of IMC Networks media and mode converter modules for 10/100/1000 Ethernet, T1/E1, DS3/E3/STS-1, VDSL and CWDM networking technologies. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit.
Advantech - IMC-711I-AC-PS - Features
- Install iMediaChassis at a central office and pair with MediaChassis populated with iMcV series modules at each remote location, to allow end-to-end monitoring of all connections from the central site.
- Rugged enclosures designed for a variety of media and mode conversion modules
- Supports a wide range of protocols
- Modular design provides future-proof upgrade path
- Flexible versions designed for a variety of environments
- Ideal for modules featuring built-in SNMP management
- One and two module options
- Standard or extended temperature performance
- AC or DC powering
- Designed for a variety of media and mode conversion modules
- Supports a wide range of protocols and future-proof upgrade paths
- High flexibility for module combinations for different environments
Specifications
Specifications
Advantech - IMC-711I-AC-PS - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Advantech - IMC-711I-AC-PS - Specifications
| Brand Name | Advantech |
|---|---|
| Manufacturer Part Number | IMC-711I-AC-PS |
| Type | Media Converter |
| UNSPSC Code | 43201553 |
| Number of Slot | 1 |
| Dimensions (W x H x D) | 10.92 x 2.28 x 10.16 cm (4.30 x 0.90 x 4.00 in.) |
| Weight | 0.27 kg (0.6 lbs) |
| Power Input (AC) | 100 ~ 240 VAC, 50~60Hz, 1.0A |
| Power Input (DC) | 7 ~ 50 VDC, 3A-0.1A |
| Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5~95% (non-condensing) |
| Safety | UL/cUL |
| EMC | CE, FCC Class A, CSA |
