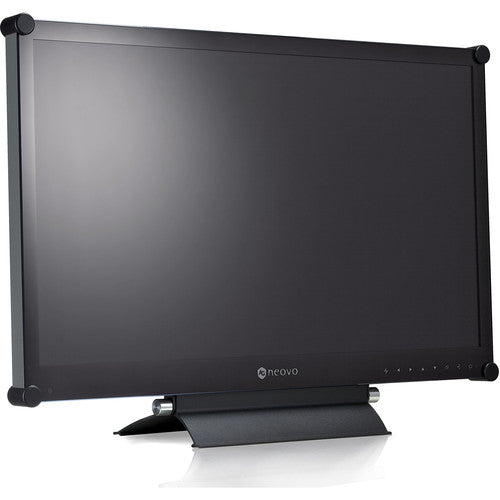

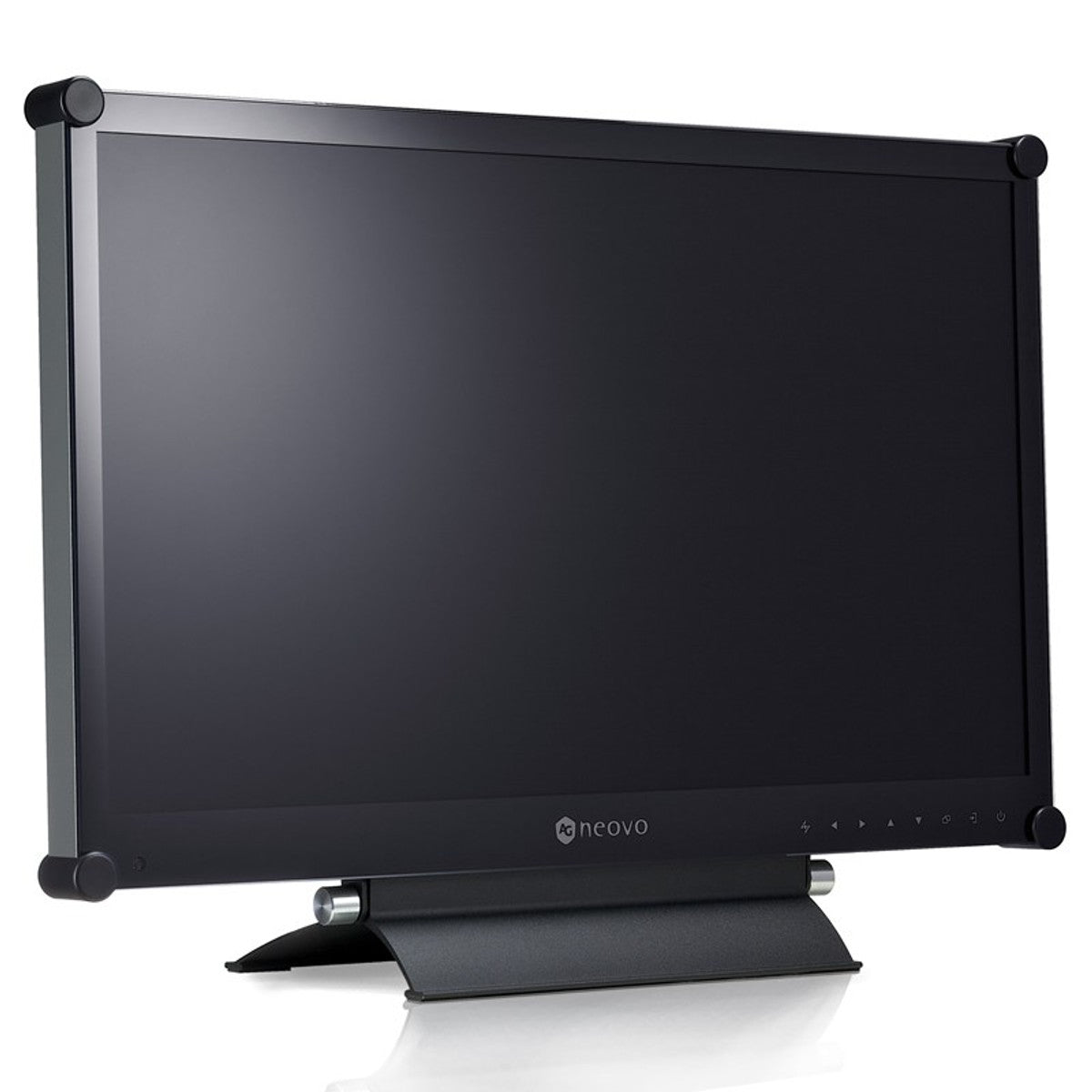

Ag Neovo Technology RX-22E | Ag Neovo Led-Backlit 22" Lcd Display
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
With its specialized gamma correction and black-level alignment, the enhanced RX-Series renders images of the highest quality even under unfavorable lighting conditions. The series is built to last and perform in 24/7 security and surveillance environments. Its durability is enhanced by AG Neovo's Anti-Burn-in technology, which prevents ghosting while performing nonstop mission-critical operations; NeoV Optical Glass and metal casing shield it from scratches or other damages.
Industry-leading Reliability - The RX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo's Anti-Burn-in technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV Optical Glass not only protect the RX-Series from damage but also keep maintenance easy.
Enhanced Gamma Correction - Selectable gamma S-curve visually optimizes different kinds of images. The AG Neovo specialized image settings enhance color, brightness, sharpness and contrast ratio, allowing the RX-Series to improve the light, shadows and color balance of videos.

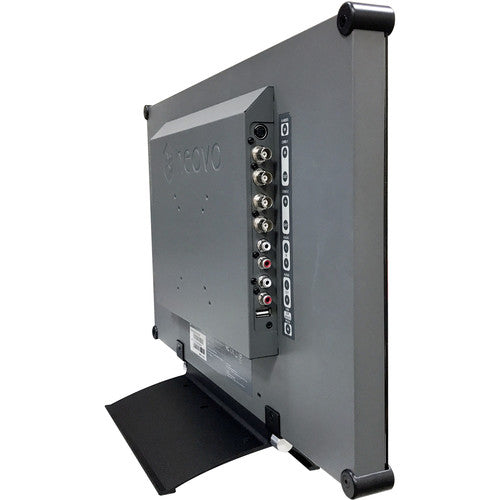

Flexible Integration - The RX-Series is equipped with 15-Pin D-Sub, HDMI & DP1.2a inputs for analogue and digital signal support respectively. It also has composite (BNC) inputs/outputs for video looping of surveillance cameras signals and DVRs.
Ag Neovo Technology - RX-22E - Features
- Anti-Burn-in technology
- NeoV Optical Glass
- Gamma correction for image clarity even under critical sources
- Black-level alignment for presenting the delicate detail of darkness
- 3D Comb Filter/ Deinterlace/ Noise Reduction/ Freeze
- EcoSmart Sensor for low watt power consumption
- Selectable aspect ratio and zoom function for ultimate image size
- Adjustable VGA/DVI input settings for analogue images
- Versatile inputs: VGA, DVI, CVBS (BNC x 2), HDMI, S-Video, DP 1.2a & RS-232
- Quick signal-switching time (?0.8 sec.)
- Flicker-Free backlight for eye comfort
- HDMI-CEC function for centralized device control
- CVBS (BNC x 2) & Audio passive looping
- Available in black and white
- Built-in speakers (2W x 2)
- Durable metal housing
- Rigorous screening of the components for mission-critical 24/7 applications
Specifications
Specifications
Ag Neovo Technology - RX-22E - Specifications
| Brand Name | Ag Neovo Technology |
|---|---|
| Manufacturer Part Number | RX-22E |
| Item Description | Ag Neovo Led-Backlit 22" Lcd Display |
| Panel Type | LED-Backlit TFT LCD (VA Panel) |
| Panel Size | 21.5" |
| Max. Resolution | FHD 1920 x 1080 |
| Pixel Pitch | 0.2480 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20,000,000 :1 (DCR) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 M |
| Response Time | 5 ms |
| TV Lines | 620 TVL (NTSC) ,625 TVL (PAL) |
| H Frequency | 15 kHz - 83 kHz |
| V Frequency | 50 Hz - 85 Hz |
| DVI | 24-Pin DVI-D |
| CVBS | BNC x 2 |
| S-Video | 4-Pin mini DIN |
| HDMI | HDMI 1.4 |
| DisplayPort | DisplayPort 1.2a |
| CVBS | BNC x 2 |
| USB | USB 2.0 (Service Port) |
| Audio In | Stereo audio in for PC (3.5 mm) x 1 , Stereo audio for video (RCA) x 2 |
| Audio Out | Stereo audio for video (RCA) x 2 |
| Speaker | 2 W x 2 |
| Power Supply | External |
| Power Requirement | DC 12 V |
| Consumption | < 23 W (On) , < 0.5 W (Stand-by/Off) |
| Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 10%~90% (No condensation) |
| Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 5%~90% (No condensation) |
| VESA FPMPMI | Yes (100 x 100 mm & 75 x 75 mm) |
| Kensington Security Socket | Yes |
| Thickness | 3.0 mm (0.12") |
