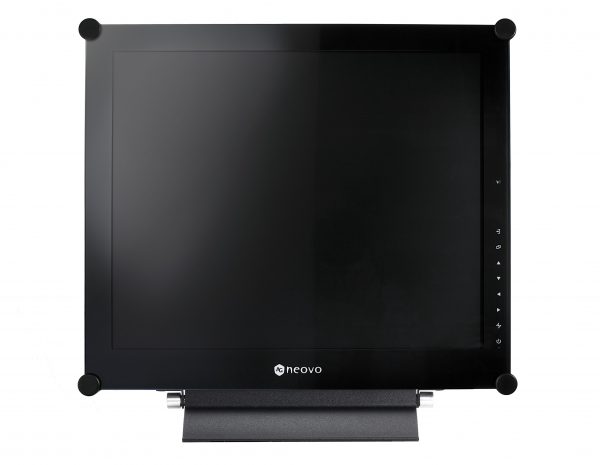

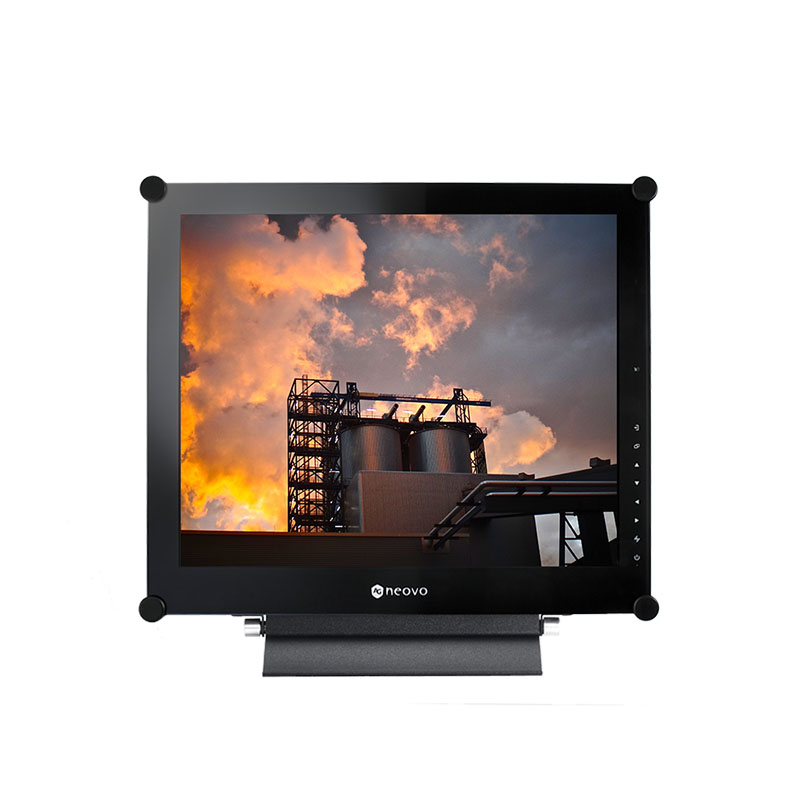

Ag Neovo Technology SX-19G | 19-Inch 5:4 Surveillance Monitor
Description
Description
The SX-19G 19-inch 5:4 surveillance monitor is designed for analogue CCTV video monitoring and security systems. It is equipped with analogue and digital connectivity as well as BNC outputs for video looping. Built to last and perform in 24/7 operations, the SX-19G features commercial-grade components, video enhancement controls and AG Neovo’s patented Anti-Burn-in technology, ensuring high performance and stable image quality. With NeoV Optical Glass screen and metal casing, the display is shielded from incidental damage and impact to withstand in critical environments. For those professionals who still use security cameras with a 5:4 aspect ratio, the SX-19G surveillance monitor offers great options to meet security needs.
Ag Neovo Technology - SX-19G - Features
- SXGA 1280 x 1024 resolution with 5:4 aspect ratio

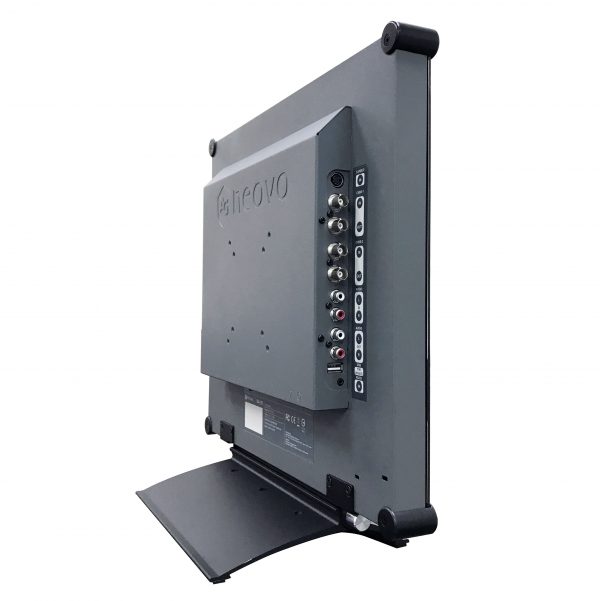

- Versatile connectivity: VGA, DVI, HDMI, DisplayPort, Composite (BNC), S-Video inputs
- Composite (BNC) passive loop-through output port
- Anti-Burn-in technology prevents image ghosting
- NeoV Optical Glass screen protects the display from scratches and other damages
Specifications
Specifications
Ag Neovo Technology - SX-19G - Specifications
| Brand Name | Ag Neovo Technology |
|---|---|
| Manufacturer Part Number | SX-19G |
| Item Description | 19-Inch 5:4 Surveillance Monitor |
| Panel Type | TN |
| Panel Size | 19.0" |
| Max. Resolution | SXGA 1280 x 1024 |
| Pixel Pitch | 0.294 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20,000,000:1 (DCR) |
| Viewing Angle (H/V) | 170°/160° |
| Display Colour | 16.7M |
| Response Time | 3 ms |
| Frequency (H) | 24 kHz-83 kHz |
| Frequency (V) | 50 Hz-75 Hz |
| DisplayPort | x 1 |
| HDMI | 1.4 x 1 |
| DVI | 24-Pin DVI-D |
| VGA | 15-Pin D-Sub x 1 |
| Composite | BNC x 2 |
| S-Video | 4-Pin mini DIN x 1 |
| Composite | BNC x 2 |
| RS232 In | 2.5 mm Phone Jack |
| USB | 2.0 x 1 (Service Port) |
| Audio In | Stereo Audio Jack (3.5 mm), Stereo Audio Jack (RCA) |
| Audio Out | Stereo Audio Jack (RCA) |
| Internal Speakers | 2W x 2 |
| Power Supply | External |
| Power Requirements | DC 12V |
| On Mode | 14W (On) |
| Standby Mode | < 0.5W |
| Off Mode | < 0.3W |
| Thickness | 3.0 mm (0.12") |
| Reflection Rate | < 1% |
| Transmission Rate | > 97% |
| Hardness | > 9H |
