Aiphone AC-10K-1G | 1-Gang 10k Reader
Regular price
$354.74
Unit price
Brand: Aiphone Systems
|
SKU:
10395238
Regular price
$354.74
Unit price
Description
Description

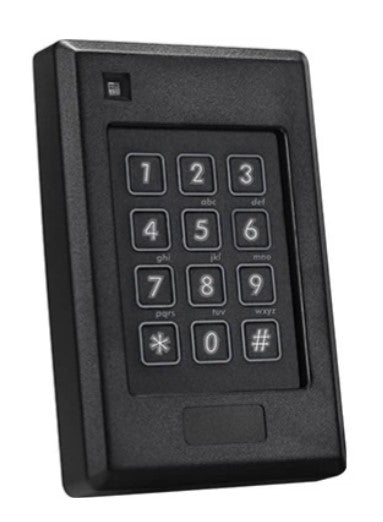

Aiphone AC-10K-1G | 1-Gang 10k Reader
The AC-10K-1G is a combination 125 kHz Wiegand proximity reader and security keypad. Clamshell cards can be read up to 6” away under ideal conditions. The keypad allows users to enter pin codes for entry, either on their own or in conjunction with a card swipe.
Specifications
Specifications
Aiphone - AC-10K-1G - Specifications
| Power Input | 5~14V DC |
|---|---|
| Power Draw | 50mA typical, 115mA peak |
| Frequency | 125 kHz |
| Certifications | CSA, FCC, CE, C-Tick |
| Supported Credentials | Various; see the list above or the Spec Sheet for details. |
| UL Listing | UL 294 |
| Operating Temp | -40°~149°F (-40°~65°C) |
| Dimensions | 4-5/16" H x 3" W x 11/16" D |
