Aiphone AC-10K-M | Mullion 10k Reader
Regular price
$354.74
Unit price
Brand: Aiphone Systems
|
SKU:
10395940
Regular price
$354.74
Unit price
Description
Description

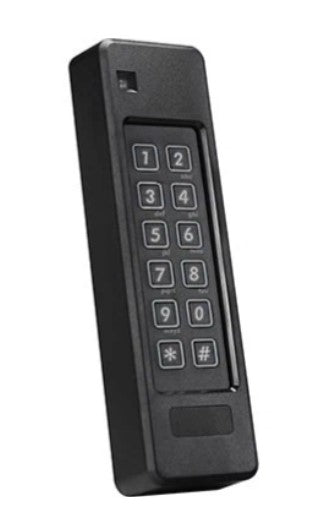

Aiphone AC-10K-M | Mullion 10k Reader
Mullion-Mount Proximity Reader with Access Keypad The AC-10K-M is a combination 125 kHZ Wiegand proximity reader and security keypad designed to be mounted on a mullion. Clamshell cards can be read up to 6” away under ideal conditions. The keypad allows users to enter pin codes for entry, either on their own or in conjunction with a card swipe.
Specifications
Specifications
Aiphone - AC-10K-M - Specifications
| Power Input | Mullion Mount Proximity and Keypad Reader |
|---|---|
| Power Draw | 50mA typical, 115mA peak |
| Frequency | 125 kHz |
| Certifications | CSA, FCC, CE, C-Tick |
| Supported Credentials | Various; see the list above or the Spec Sheet for details. |
| UL Listings | UL 294 |
| Operating Temp | -40°~149°F (-40°~65°C) |
| Dimensions | 6-1/8" H x 1-3/4" W x 15/16" D |
