Aiphone AC-2DM-B | PoE Two-Door Access Controller, Black

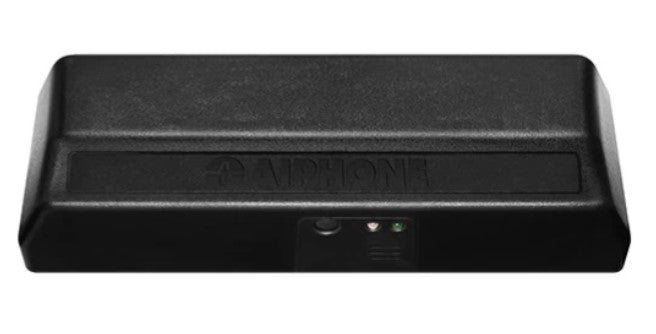

The AC-2DM-B is a PoE two-door controller with a black case designed to be mounted above or near a door. It can be used to control and unlock the door it is mounted by, as well as a nearby door within 500'. This module can be used on its own, or as part of a larger AC Series access control system, with additional AC-2DM modules and AC-2DR panels.
Aiphone - AC-2DM-B - Features
- Two Wiegand reader inputs
- Two solid state dry contact relays
- Integrated lock power (12V DC, 500mA)
- Four configurable inputs
- Infrared motion sensor
- Up to 100,000 card holders
- Built-in diagnostic LCD
- PoE powered
- Custom scripting and actions available
- NDAA and TAA compliant
- UL and ULC Listed (UL 294/ULC 5319-05)
Specifications
Specifications
Aiphone - AC-2DM-B - Specifications
| Power Source | PoE (IEEE 802.3af) |
|---|---|
| Motion Sensor | Infrared |
| Lock Power | 12V DC, 500mA |
| Option Power | 12V DC, 300mA |
| Contact Rating | 24V DC, 1A |
| Protocols | IPv4, IPv6, TCP, UDP, HTTPS |
| Reader Inputs | Wiegand |
| Card Storage | Up to 100,000 user credentials |
| Event Storage | Up to 50,000 events (first in, first out) |
| UL/ULC Listing | UL 294/ULC S319-05 |
| Dimensions | 3-1/2" H x 10" W x 2-3/8" D |
